Nmax 155 ABS





Nmax 155 ABS

NMAX. Everyday life included





NMAX. Everyday life included

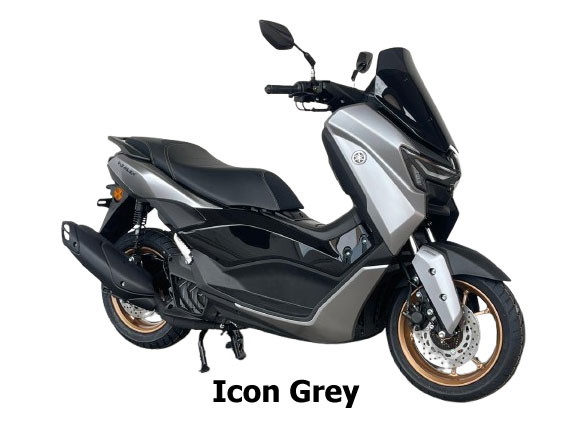

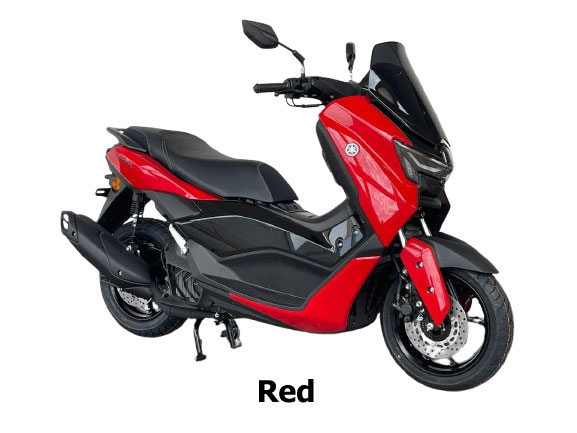

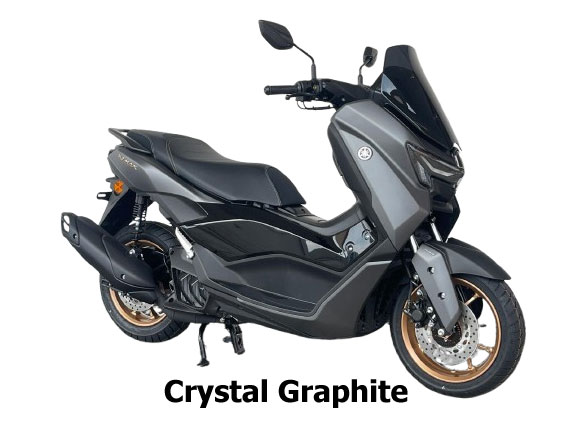

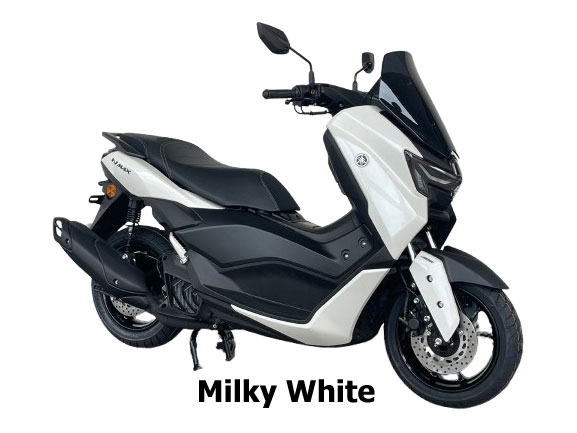

The NMAX 155 gives you all the fun and agility you expect from a lightweight scooter - with the added bonus of quicker acceleration and a higher top speed that comes with its more powerful 155cc engine!

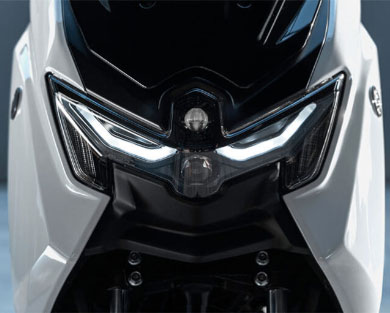

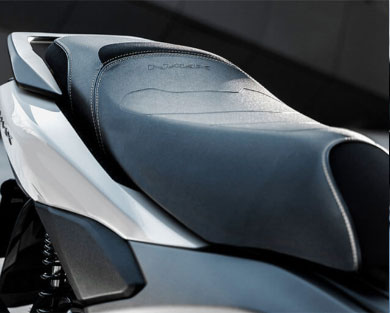

The spacious riding position and long dual seat give you a relaxing and comfortable journey to work or college - and with its powerful LED triple headlights and sleek tail, the stylish MAX family bodywork underlines the NMAX 155's premium design and high build quality.

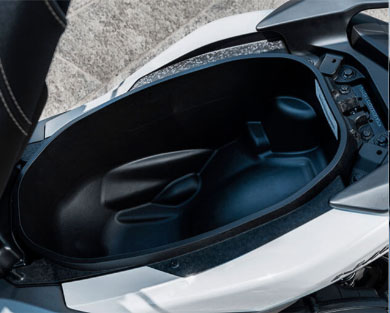

Powerful front and rear disc brakes feature ABS as standard - and with 23.5 litres of underseat storage as well as a handy front pocket, the NMAX 155 is the sporty and practical way to move!

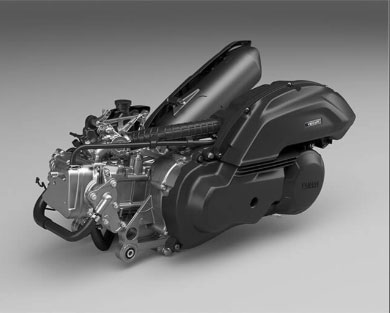

Engine type Liquid Cooled, 4-stroke, SOHC, 4-valve
Displacement 155.1 cc
Max. power 11.1kW / 8,000 r/min
Max. torque 14.4 Nm / 6,000 r/min
Compression ratio 10.5:1
Bore x stroke 58 mm x 58.7 mm
Ignition System TCI (Transistor Controlled Ignition)
Starter system Electric Starter
Transmission system V-Belt Automatic
Fuel tank capacity 6.6 Liters

Front suspension system Telescopic

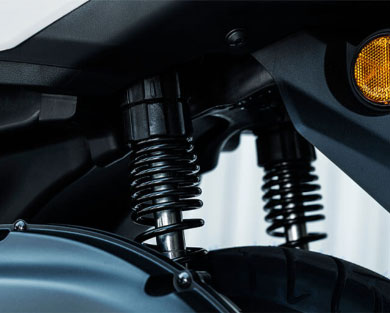

Rear suspension system Unit swing
Front brake Single Disc Brake (ABS)
Rear brake Single Disc Brake (ABS)
Front tyre 110/70-13 MC 48P
Rear tyre 130/70 -13MC 63P

Length x Width x Height (mm) 1,955 x 740 x 1,115 mm
Seat height (mm) 765 mm
Wheel base (mm) 1,350 mm
Minimum ground clearance (mm) 135 mm
