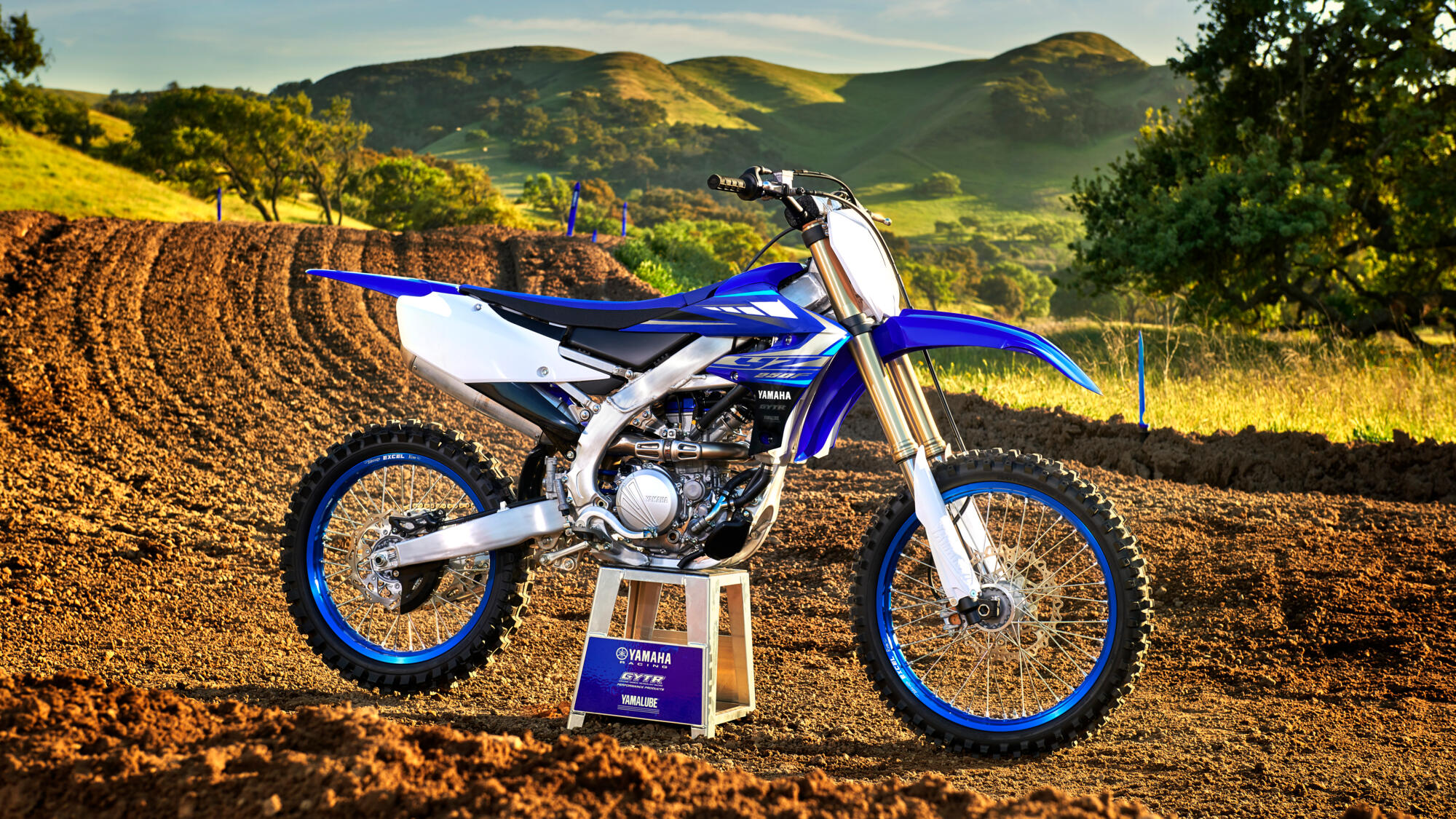

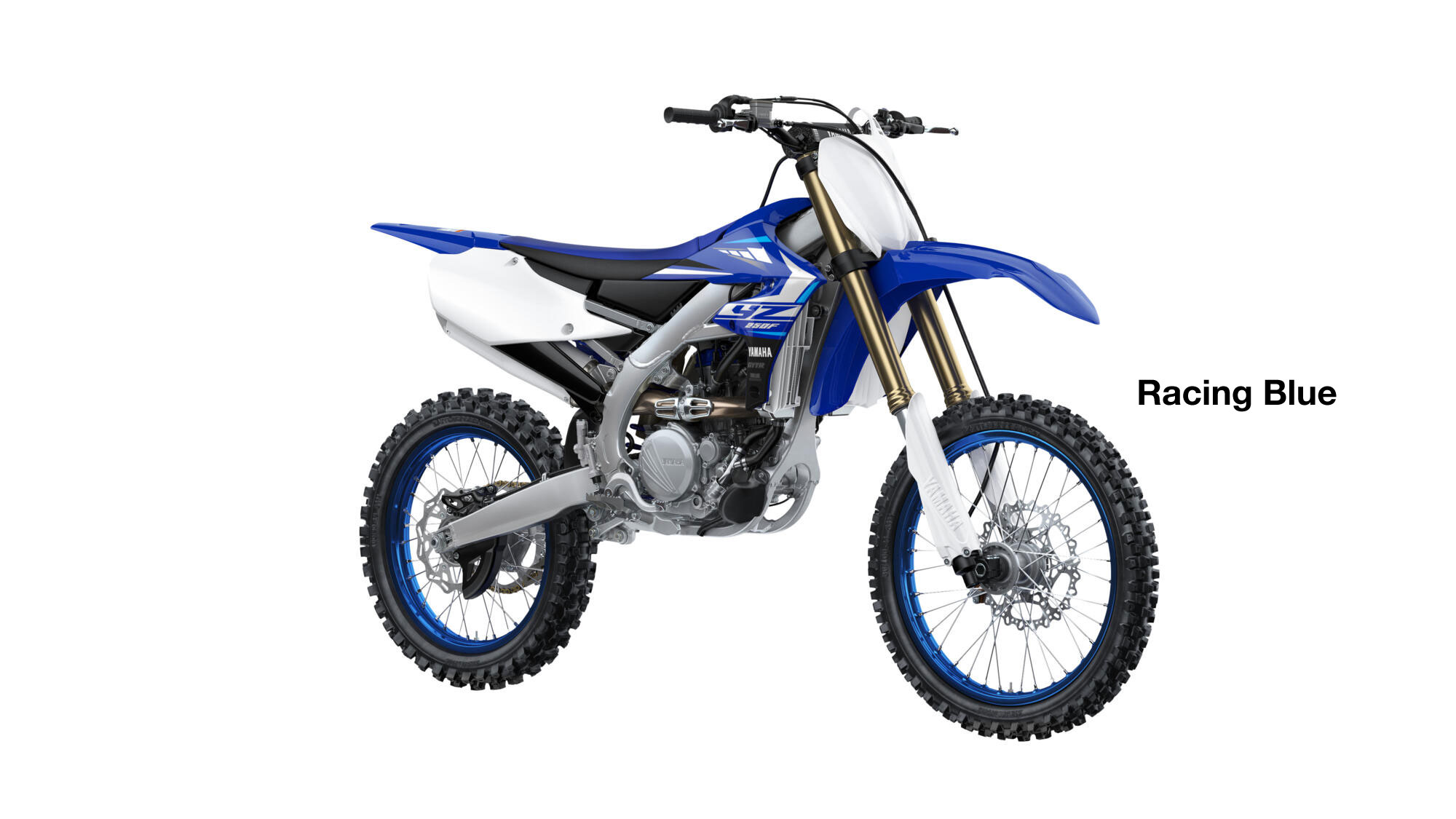

YZ250F
Forward thinking

  • Make :Yamaha
  • Model :YZ250F
  • Displayment :250cc
  • Fuel Tank :6,4 litres
  • Oil Capacity :1,2 litres

Overview

Forward thinking

This is the bike that has totally revolutionized the 250 class. With its radical reverse cylinder head, rearward sloping cylinder and underseat fuel tank, the YZ250F is the way ahead for motocross design.

Shortly after its debut this bike took AMA 250 Supercross and Motocross titles, as well as a WMX world crown and multiple GP race wins. And to underline Yamaha's policy of continuous development, we've made a range of technical improvements designed to keep the YZ250F on top.

Featuring important new engine, transmission and chassis changes, the latest YZ250F is built to give even better performance and useability, making it the bike of choice for amateurs and pro riders.

Details

  • NEW - Lightweight piston and high-spec con rod
  • NEW - Crank and balancer design, ECU

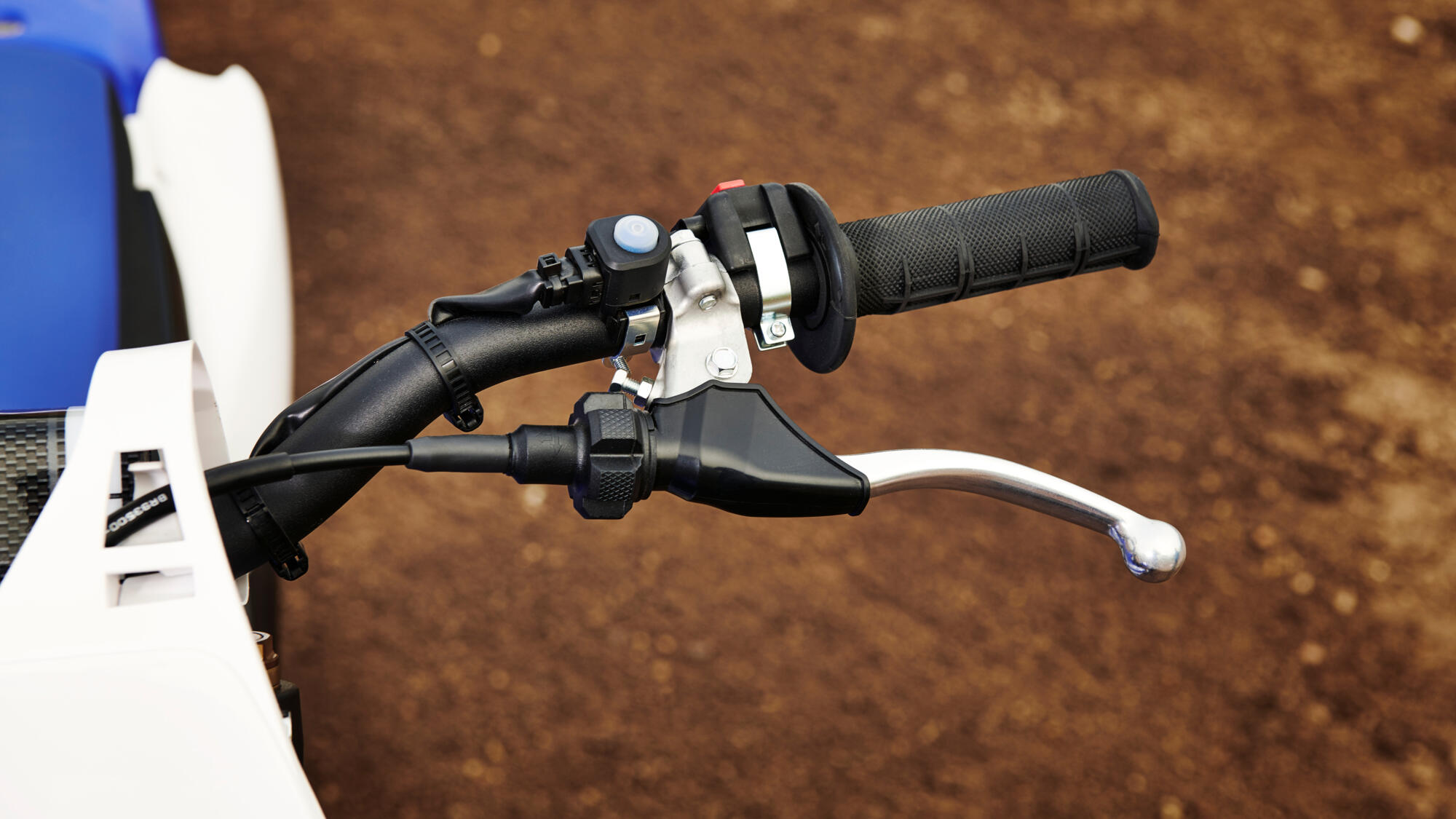

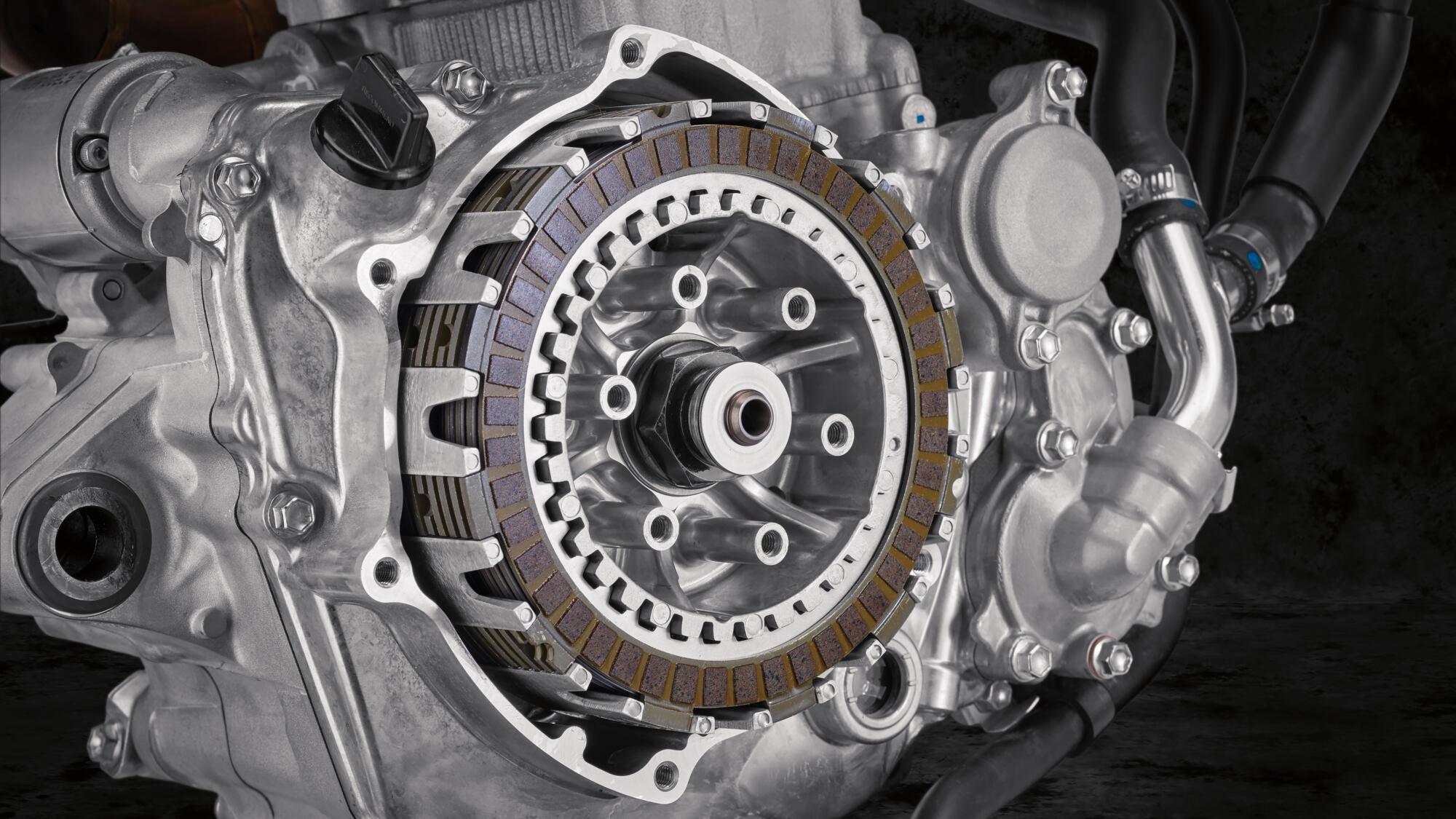

  • NEW - Refined clutch and gear shifting
  • NEW - Refined suspension settings
  • NEW - Large diameter 270mm front brake

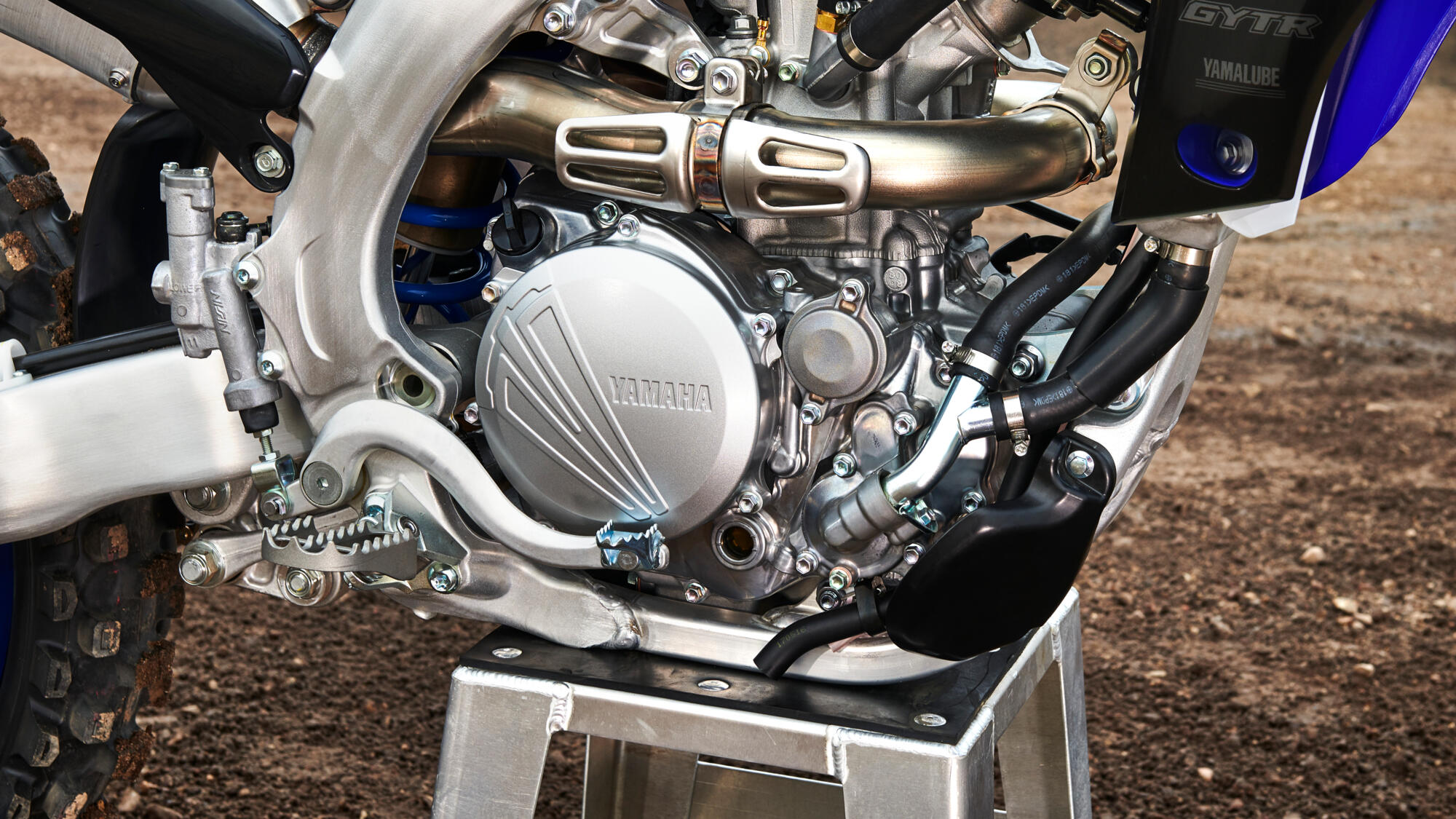

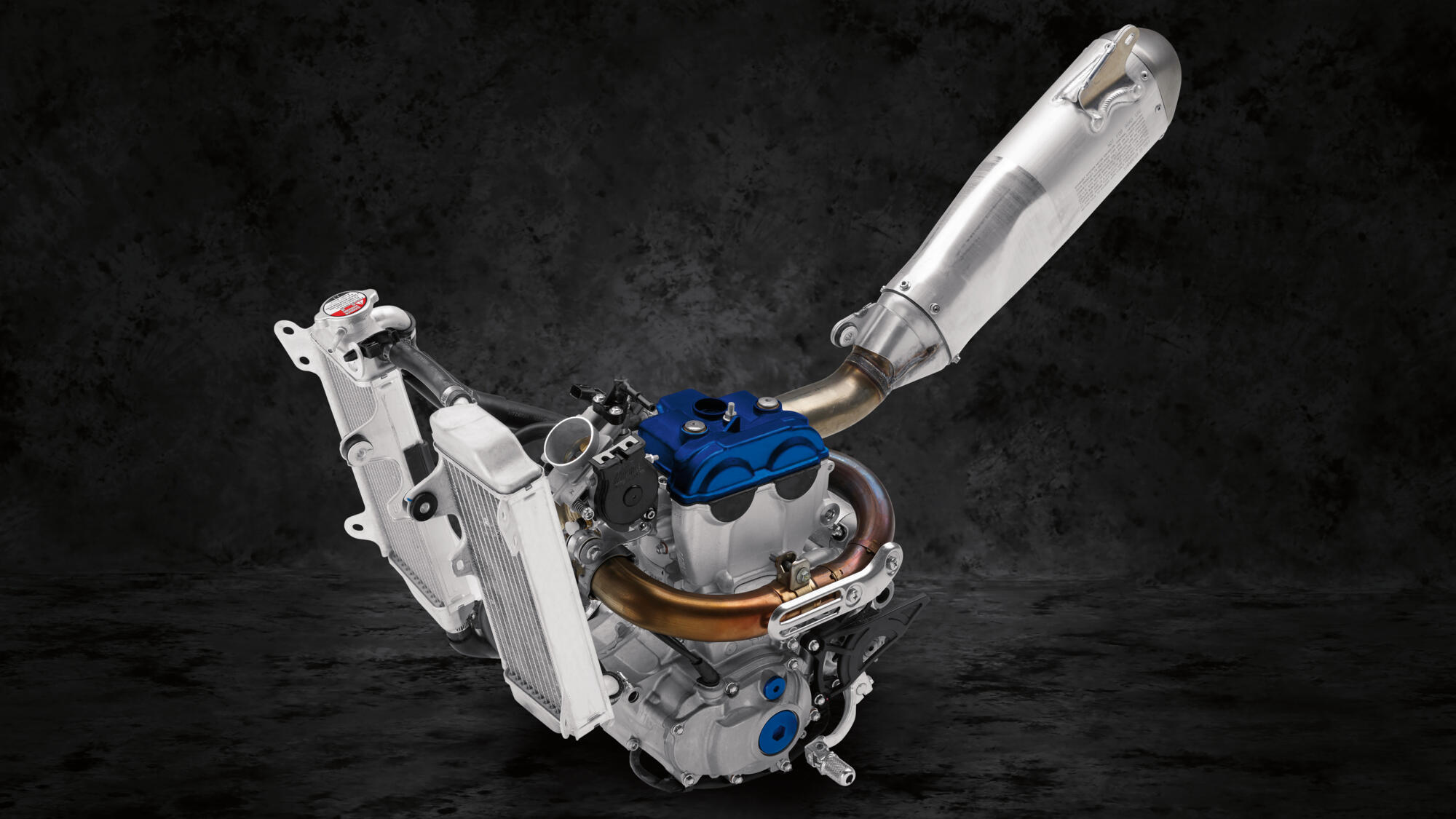

  • 250cc liquid-cooled DOHC 4-valve engine
  • Reverse cylinder head with front-facing inlet
  • Mass centralized design for agile handling
  • Aluminum bilateral-beam frame
  • Air-Oil-Separate (AOS) upside-down front forks
  • Linked-type Monocross suspension
  • Grand Prix race-winning technology

Technical Specifications

Engine

  • Engine Type :liquid-cooled, 4-stroke, DOHC, 5-valve, Forward-inclined single cylinder
  • Displacement :250cc
  • Compression Ratio :13,5 : 1
  • Bore x Stroke :77,0 mm x 53,6 mm
  • Ignition System :CDI
  • Starter System :Kick
  • Transmission System :Constant Mesh, 5-speed
  • Final Transmission :Chain
  • Lubrication :Dry sump
  • Fuel Tank Capacity :6,4 litres
  • Oil Capacity :1,2 litres

CHASSIS

  • Front Suspension System :Telescopic forks
  • Rear Suspension System :Swingarm, (link suspension)
  • Front Brake :Dual Discs, Ø 250 mm
  • Rear Brake :Single Disc, Ø 245 mm
  • Front Tyre :80/100-21-51M
  • Rear Tyre :100/90-19 57M

Dimensions

  • Length x Width x Height (mm) :2.168 x 825 x 1.304 mm
  • Seat Height (mm) :991 mm
  • Wheel Base (mm) :1.473 mm
  • Minimum Ground Clearance (mm) :377 mm

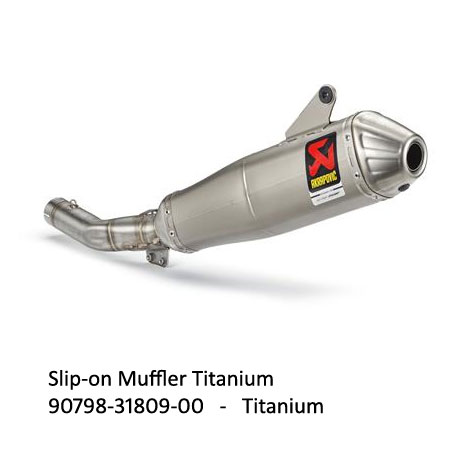

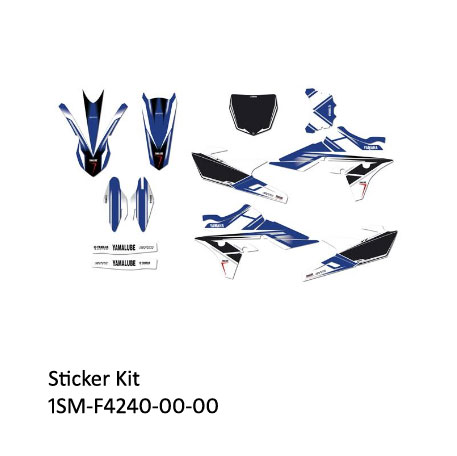

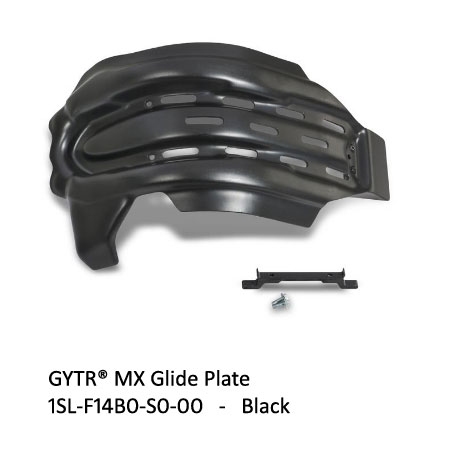

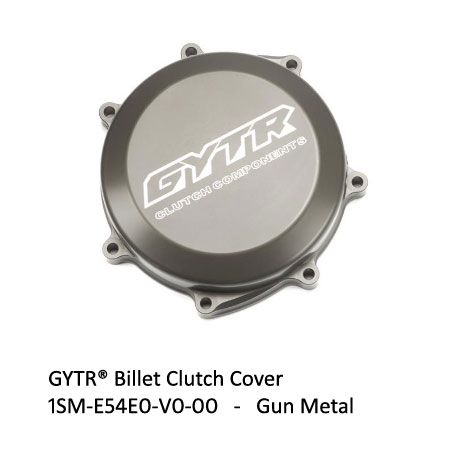

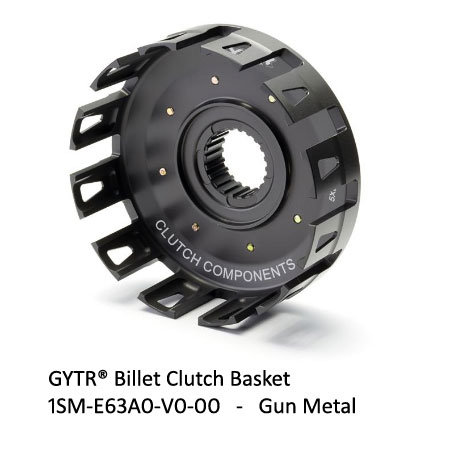

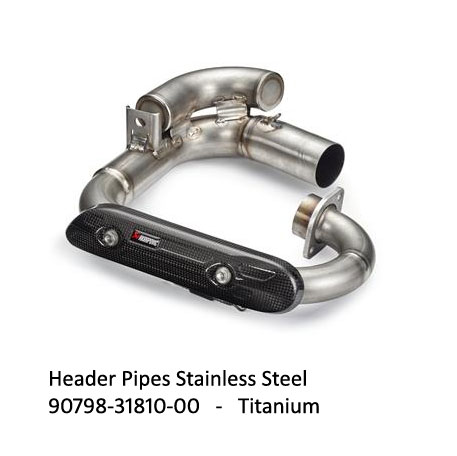

Accessories
