Ray of Darkness

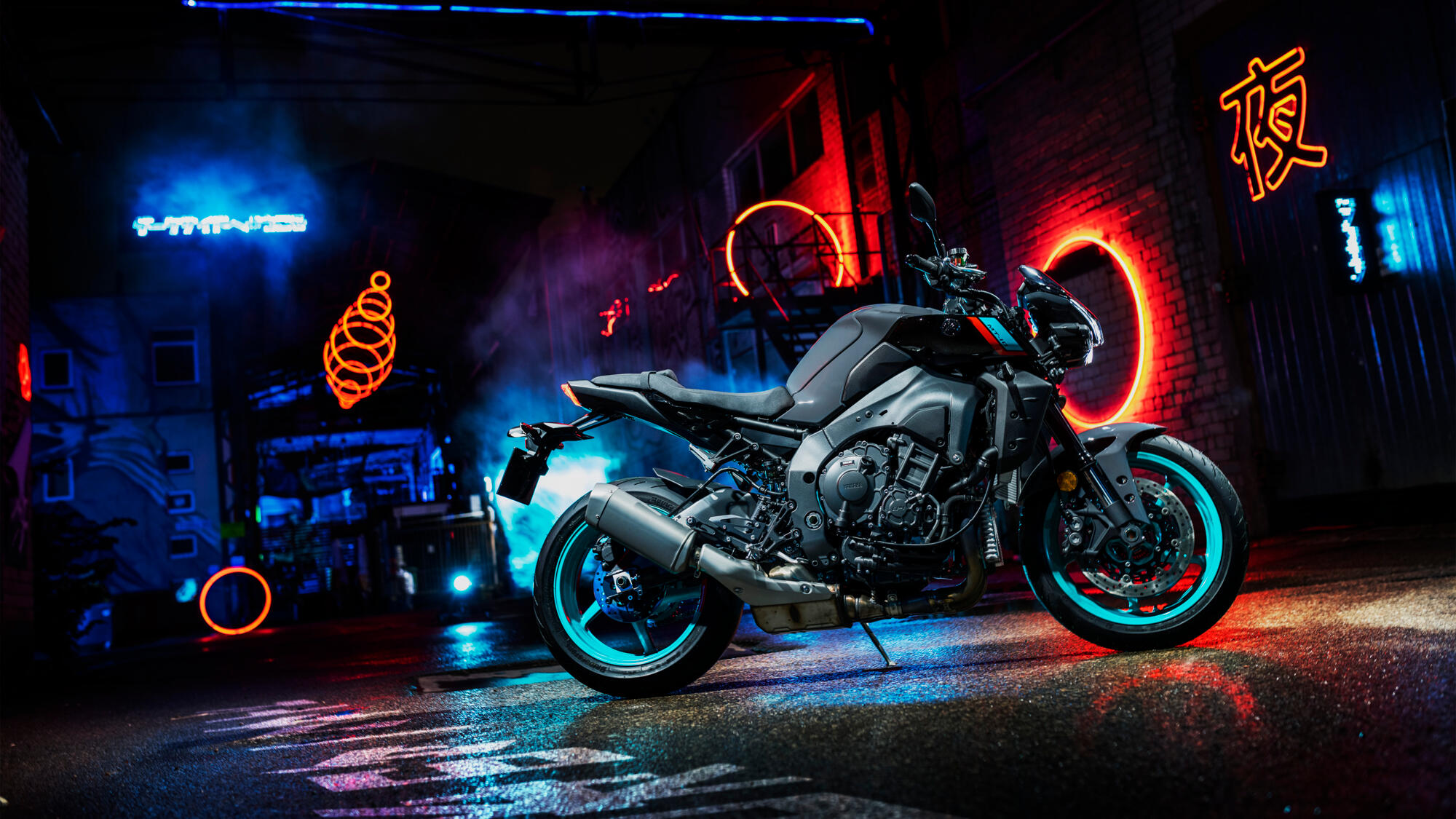

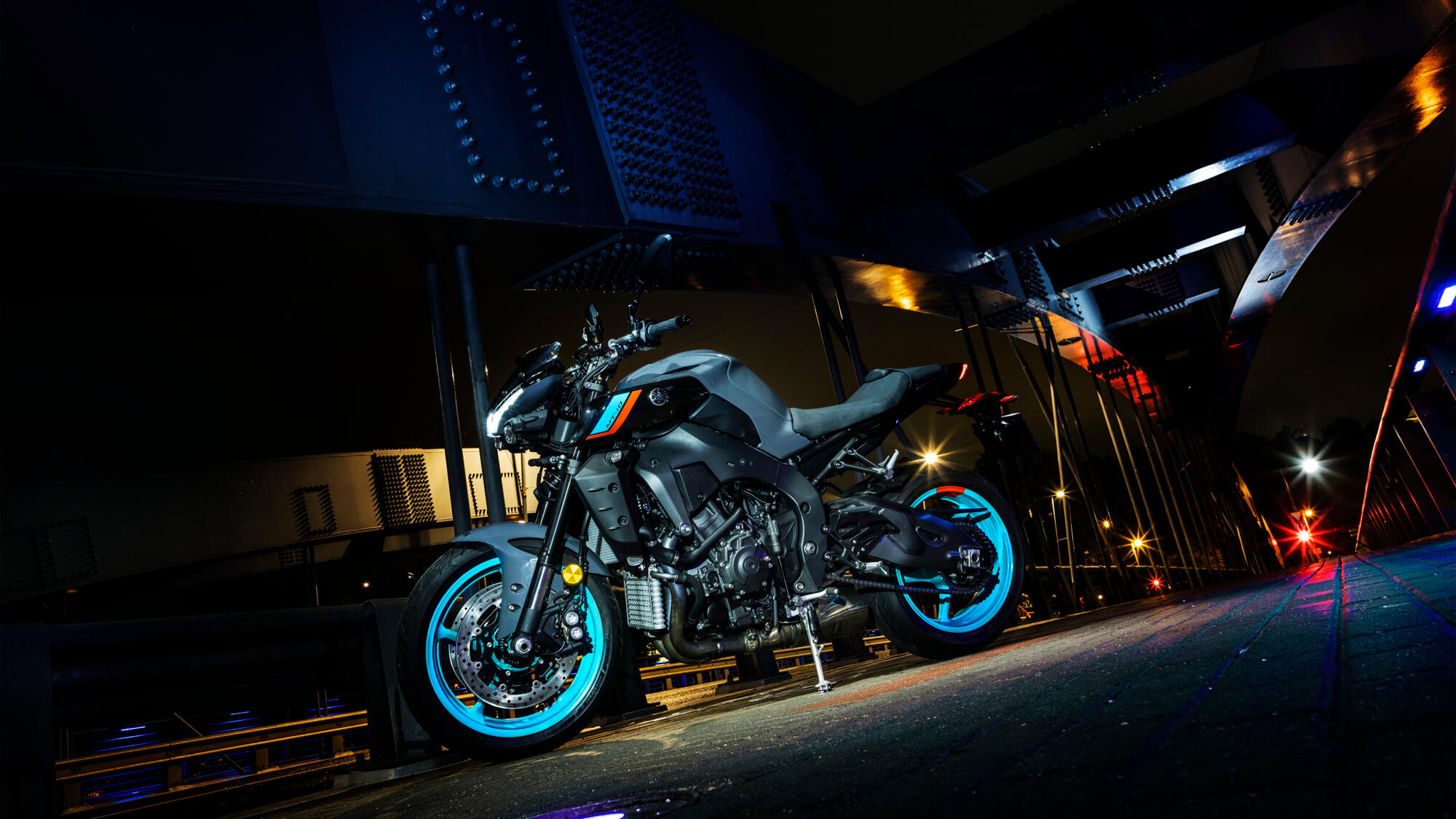

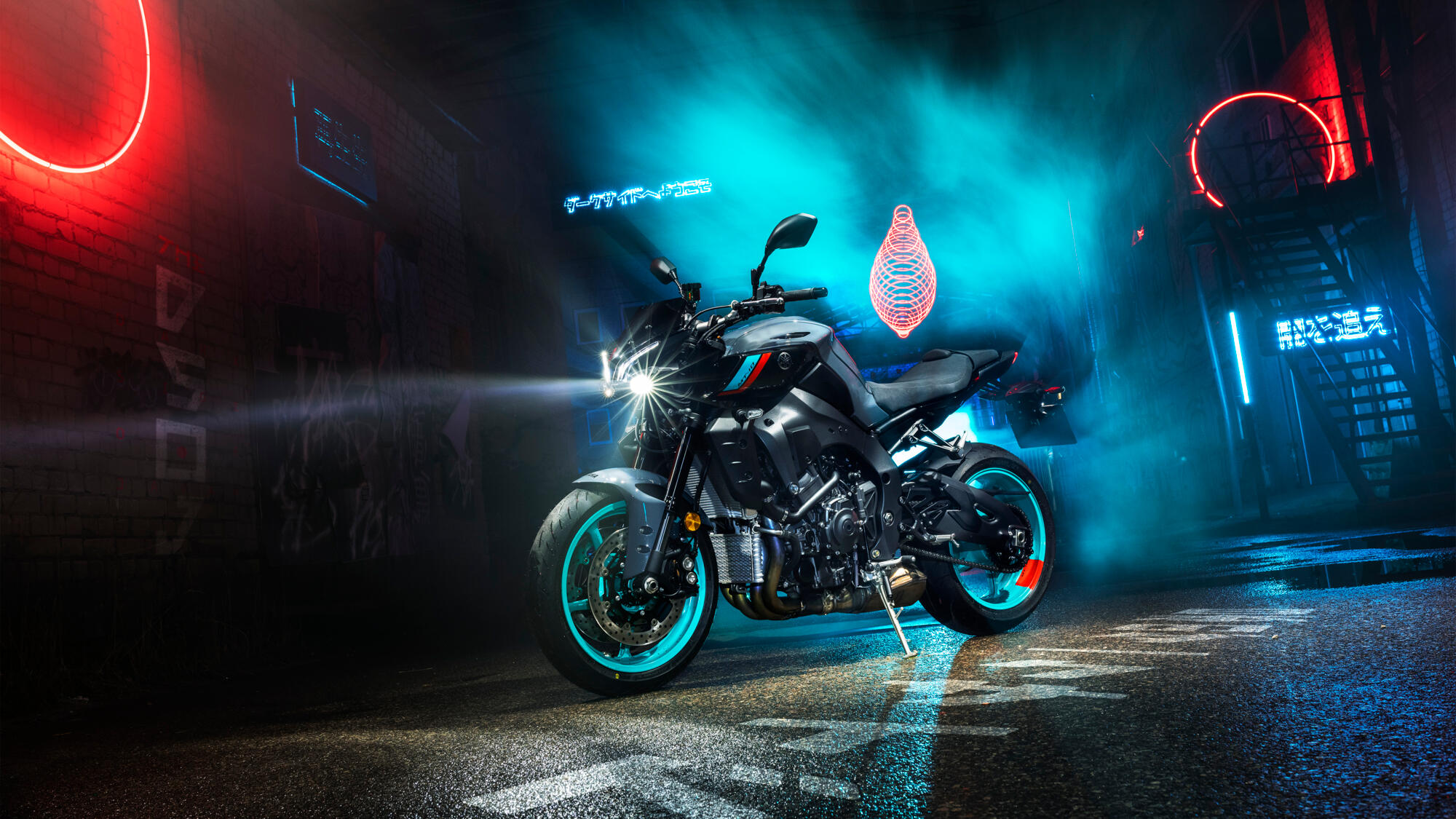

Power. Torque. Agility. The MT-10 is the one you’ve been waiting for. It’s by far the most powerful MT ever created. And the time has come for you to enter the next level of darkness.
Make An EnquiryPower. Torque. Agility. The MT-10 is the one you’ve been waiting for. It’s by far the most powerful MT ever created. And the time has come for you to enter the next level of darkness.
You’ve done a lot of riding. So you know exactly what you want. Serious power with corner-carving precision. And natural ergonomics that mean you can ride anywhere on any road. Ride the Ray of Darkness with the MT-10.

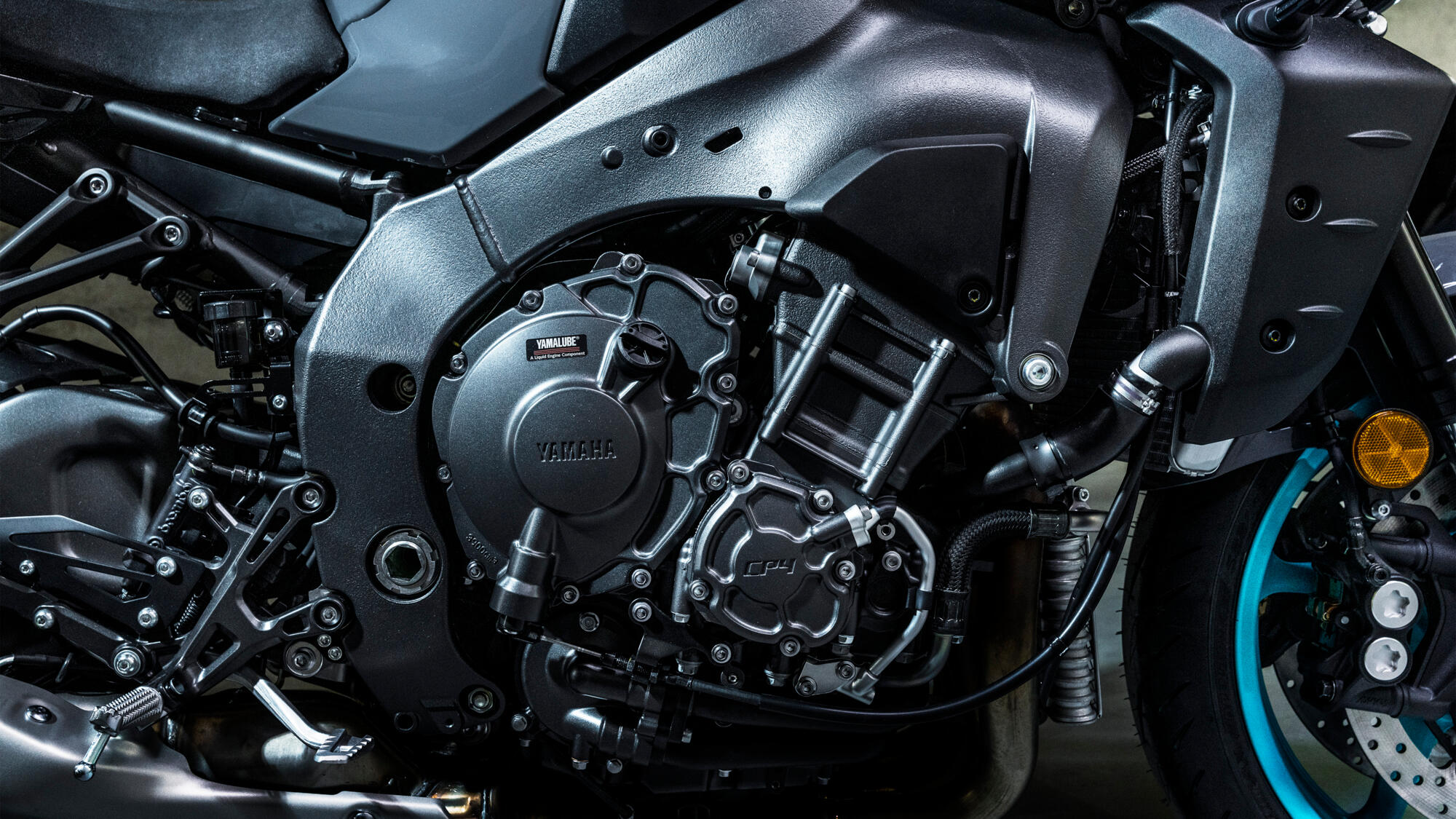

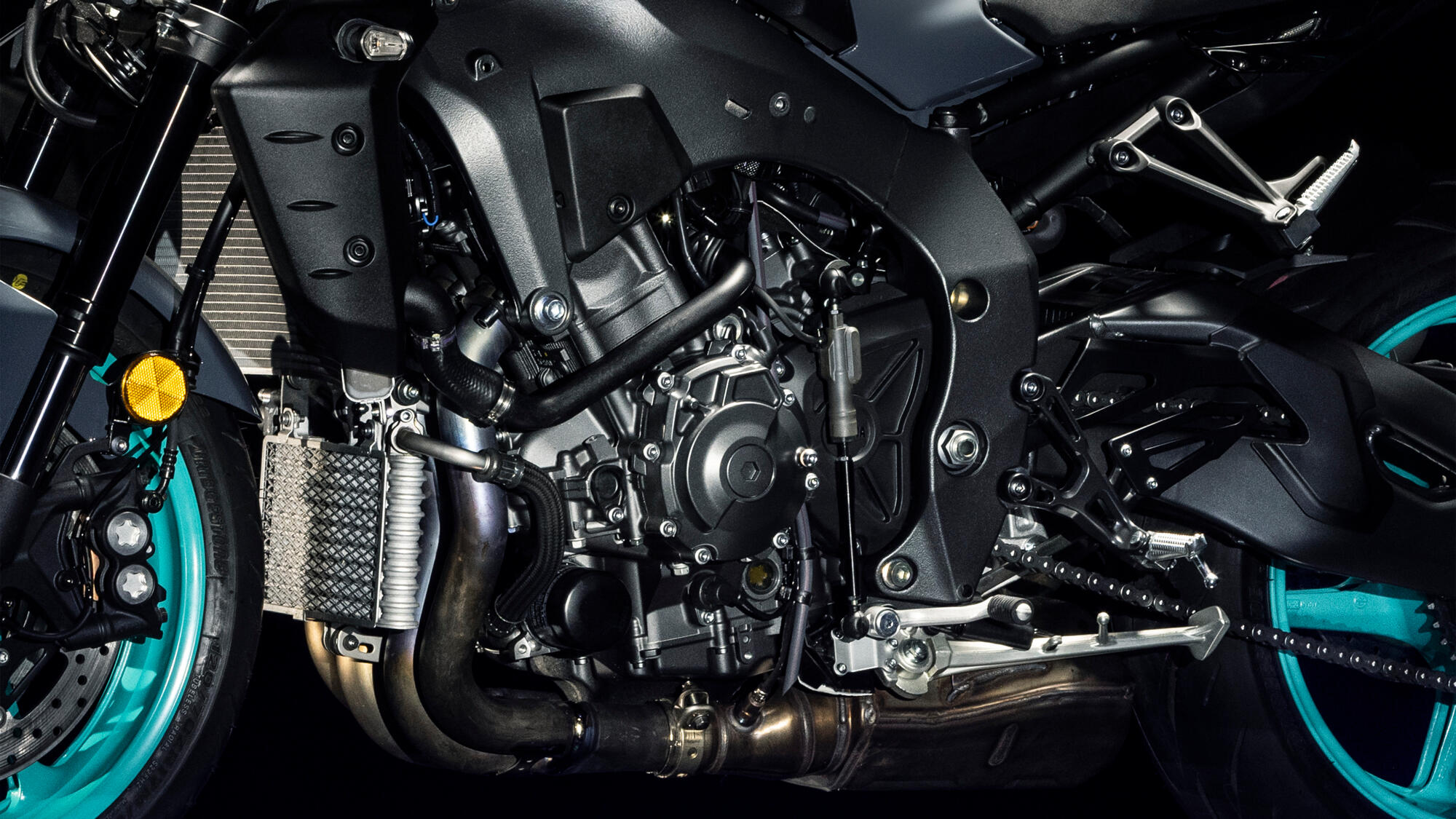

Driven by a 998cc crossplane engine tuned for extra low to mid range torque - and rolling on a lightweight ultra-short wheelbase aluminium Deltabox chassis with a natural riding position - the MT-10 gives you ultimate power with class leading agility and total control.
| Engine Type: | liquid-cooled, 4-stroke, DOHC, 4-valves |
| Displacement: | 998cc |
| Max. Power: | 118.0 kW (160.4PS) @ 11,500 rpm |
| Max. Torque: | 111.0 Nm (11.3 kg-m) @ 9,000 rpm |
| Compression Ratio: | 12 : 1 |
| Bore x Stroke: | 79.0 mm x 50.9 mm |
| Ignition System: | TCI |
| Starter System: | Electric |
| Transmission System: | Constant Mesh, 6-speed |
| Final Transmission: | Chain |
| Lubrication: | Wet sump |
| Fuel Tank Capacity: | 17 litres |
| Oil Capacity: | 3.9 litres |
| Front Suspension System: | Telescopic forks, Ø 43 mm |
| Rear Suspension System: | Swingarm, (link suspension) |
| Front Brake: | Hydraulic dual disc, Ø 320 mm |
| Rear Brake: | Hydraulic single disc, Ø 220 mm |
| Front Tyre: | 120/70 ZR17 M/C (58W) |
| Rear Tyre: | 190/55 ZR17 M/C (75W) |
| Length x Width x Height (mm): | 2,095 mm x 800 mm x 1,110 mm |
| Seat Height (mm): | 825 mm |
| Wheel Base (mm): | 1,400 mm |
| Minimum Ground Clearance (mm): | 130 mm |
