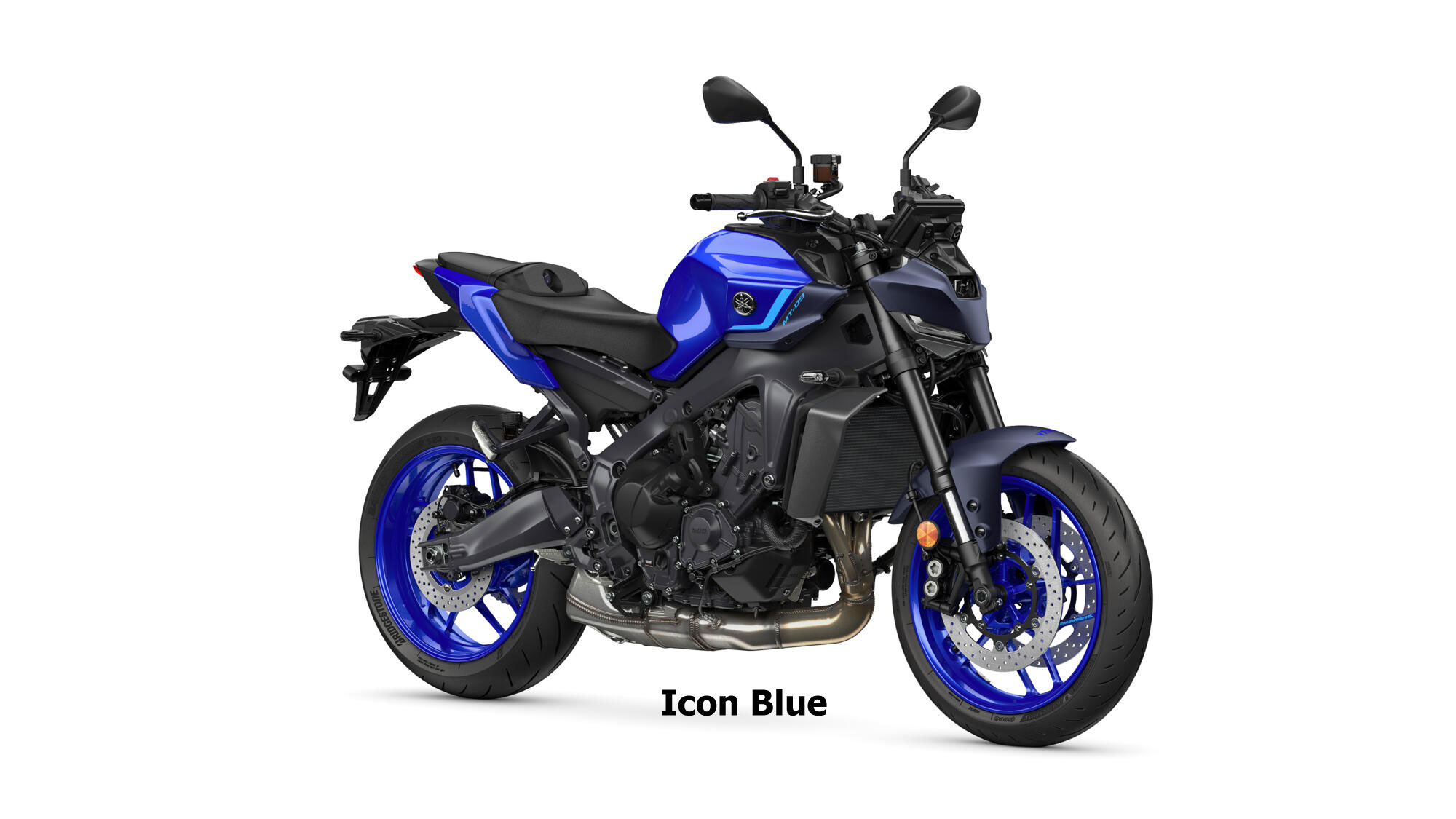

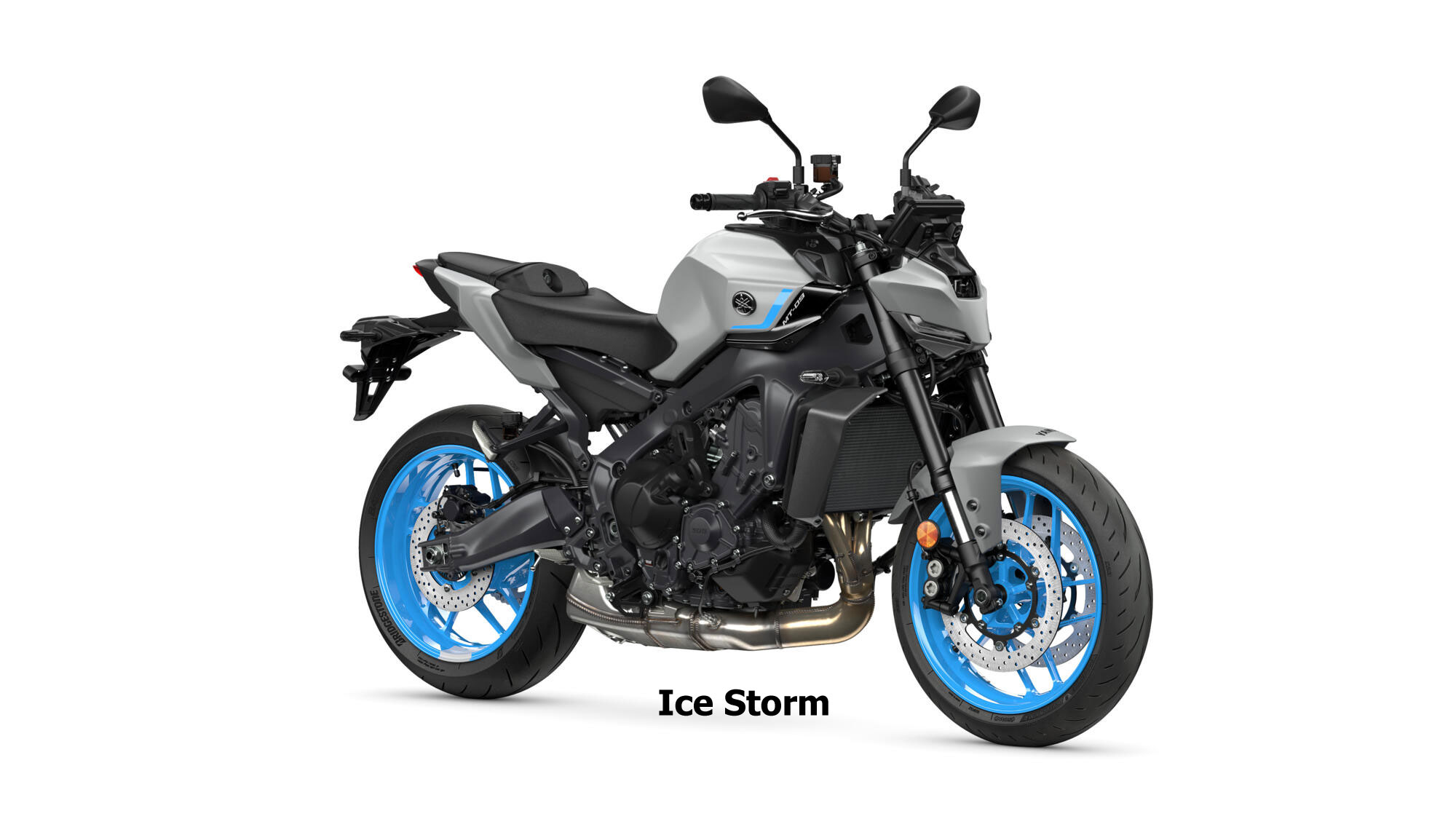

- Colors
- Engine
- Chasis
- Dimensions

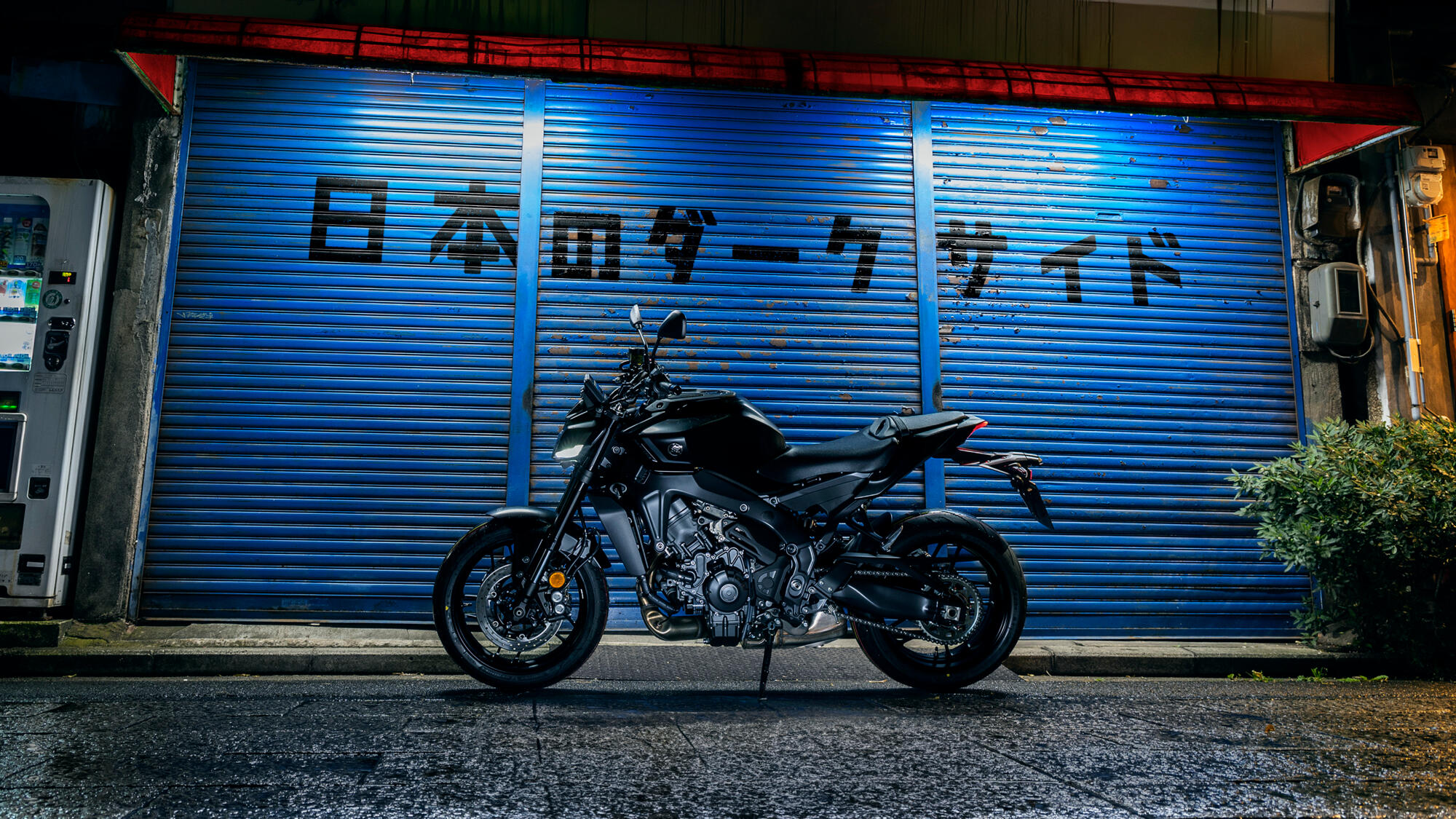

UNLEASH YOUR DARKNESS.

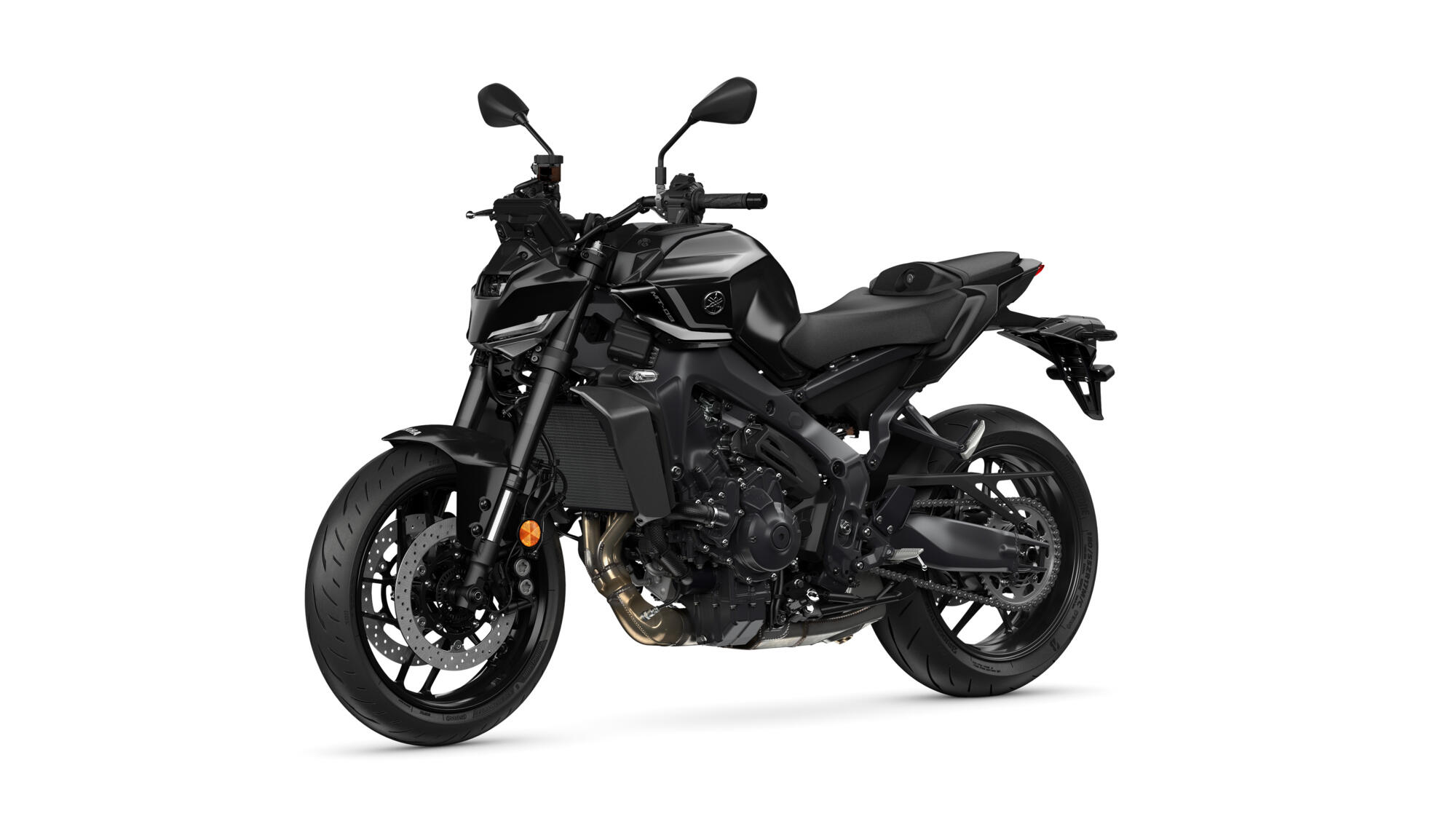

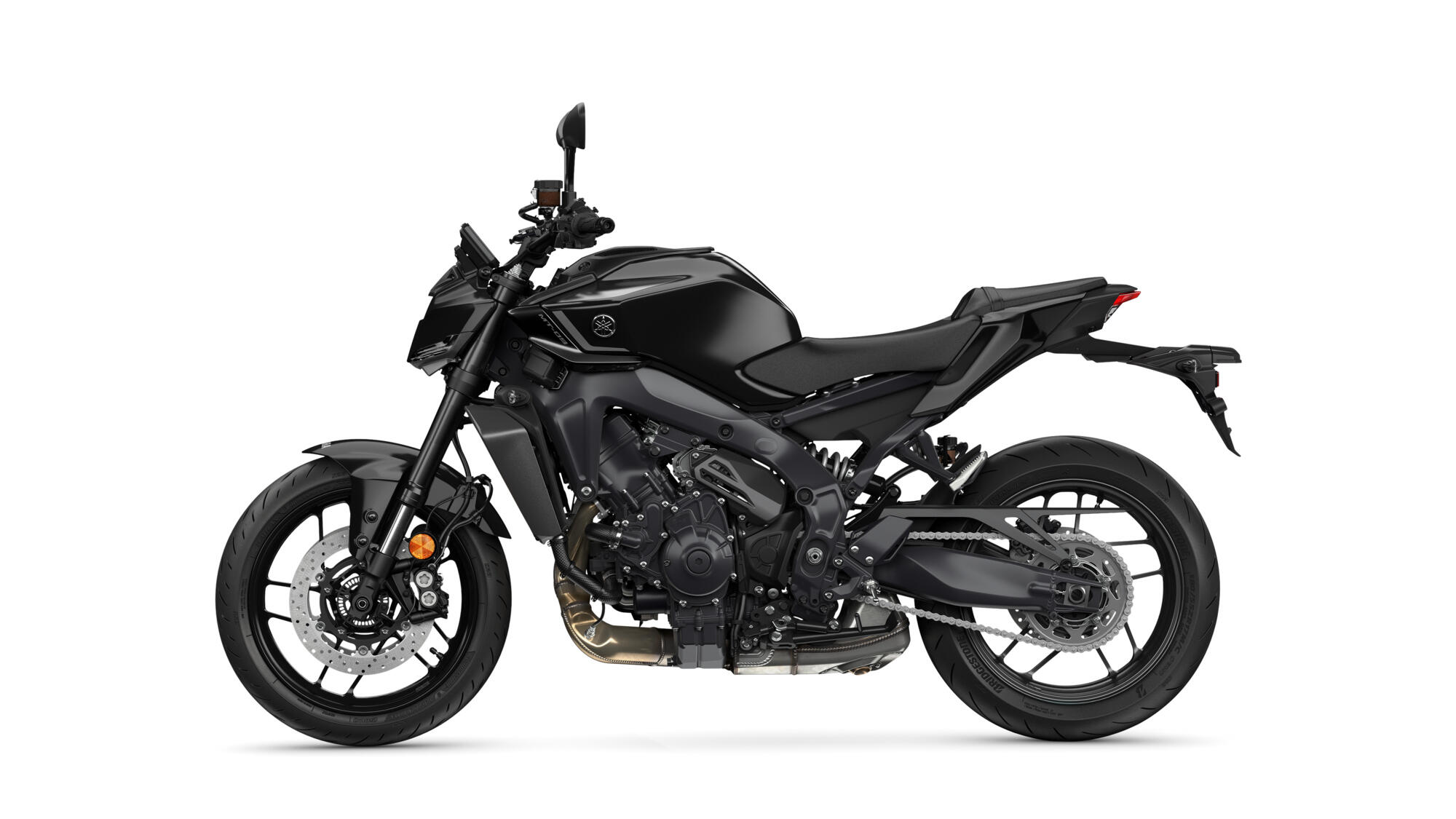

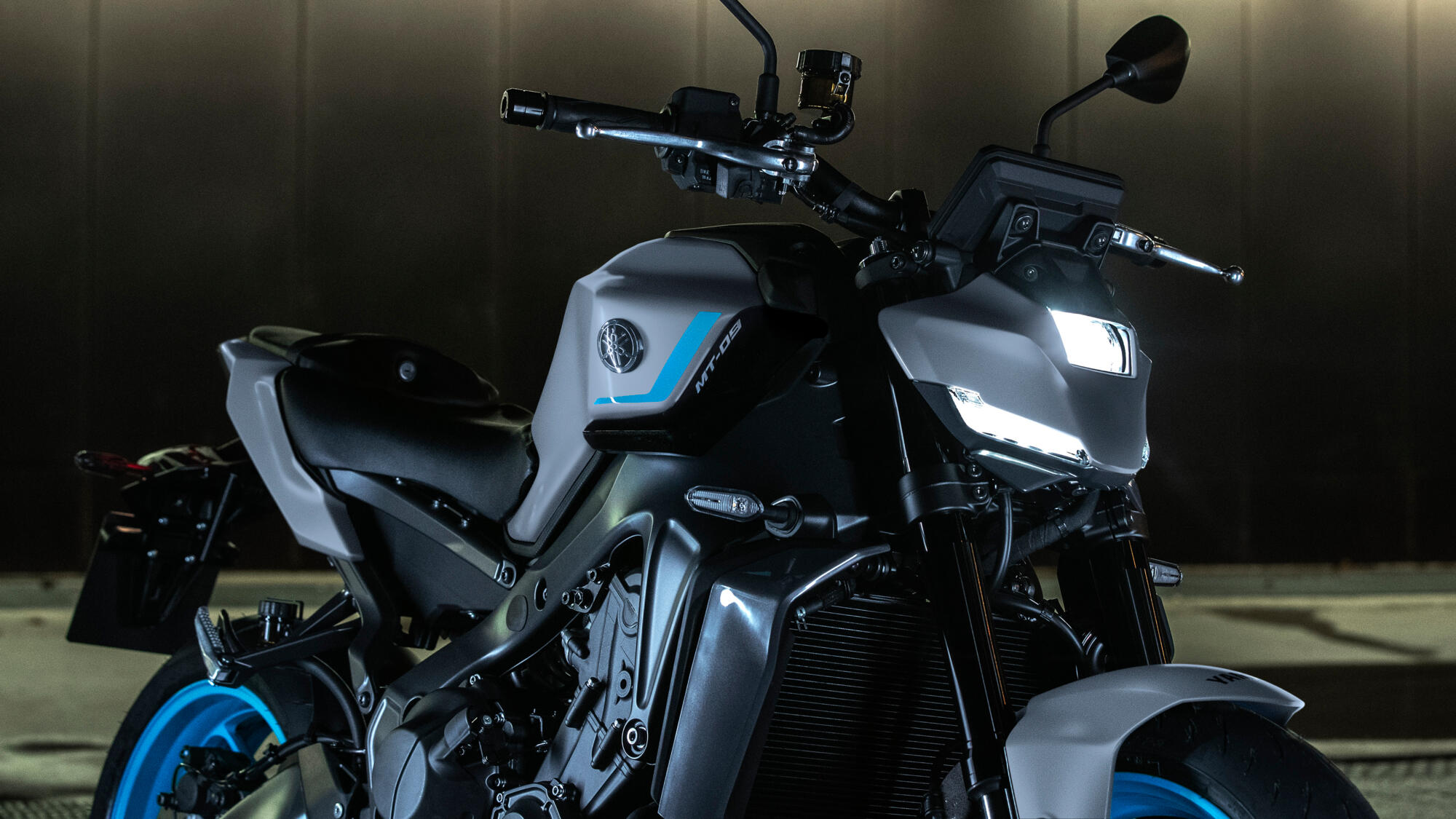

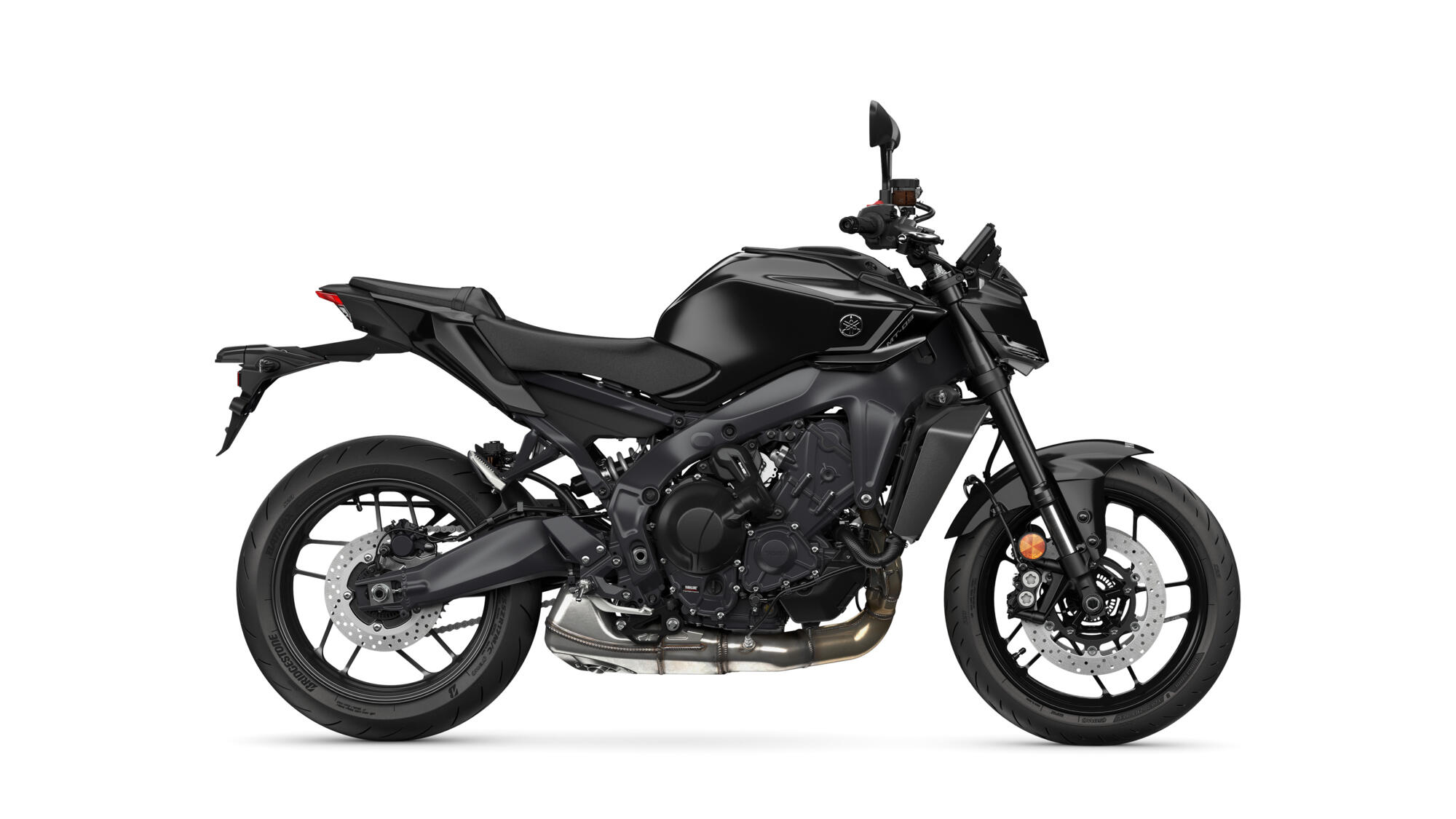

Infused with Dark Side of Japan DNA, the MT-09's aggressive new look is designed to amplify the feeling of the CP3's iconic torque-rich acceleration. Embodying a 'less is more' approach, each and every detail is intended to reinforce the MT-09's aggressive style.
A compact and agile chassis results in razor sharp handling, while a redefined riding position delivers the most heightened and engaged riding experience in the Hyper Naked range. Next level technology further enhances the riding experience, including lean-sensitive rider aids, customisable riding modes and an all-new full colour TFT dashboard featuring smartphone connectivity and navigation.
At a glance
- A more engaged riding position

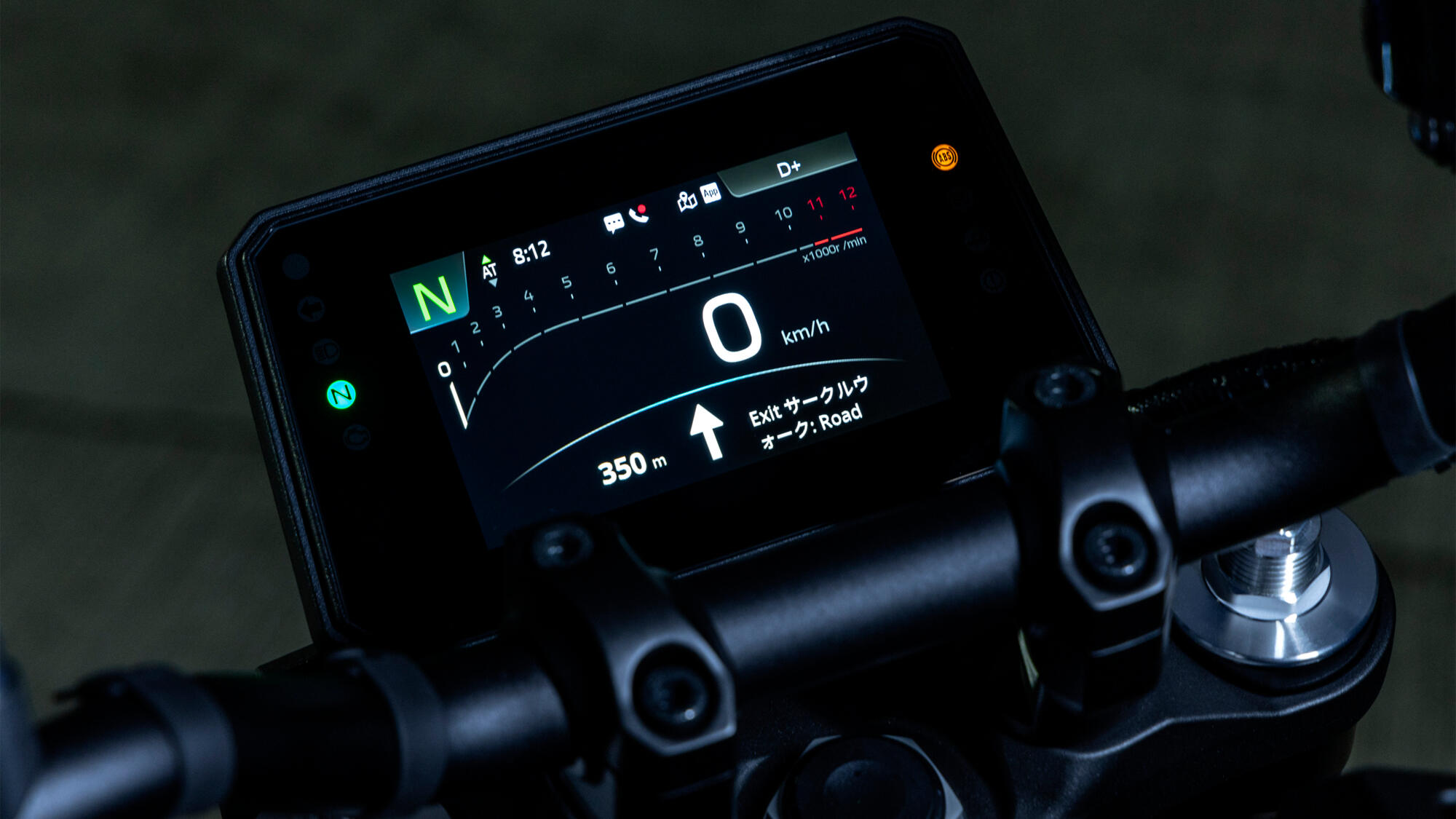

- Full colour 5-inch TFT display with connectivity and navigation
- Acoustic amplifier grilles for an enhanced riding experience

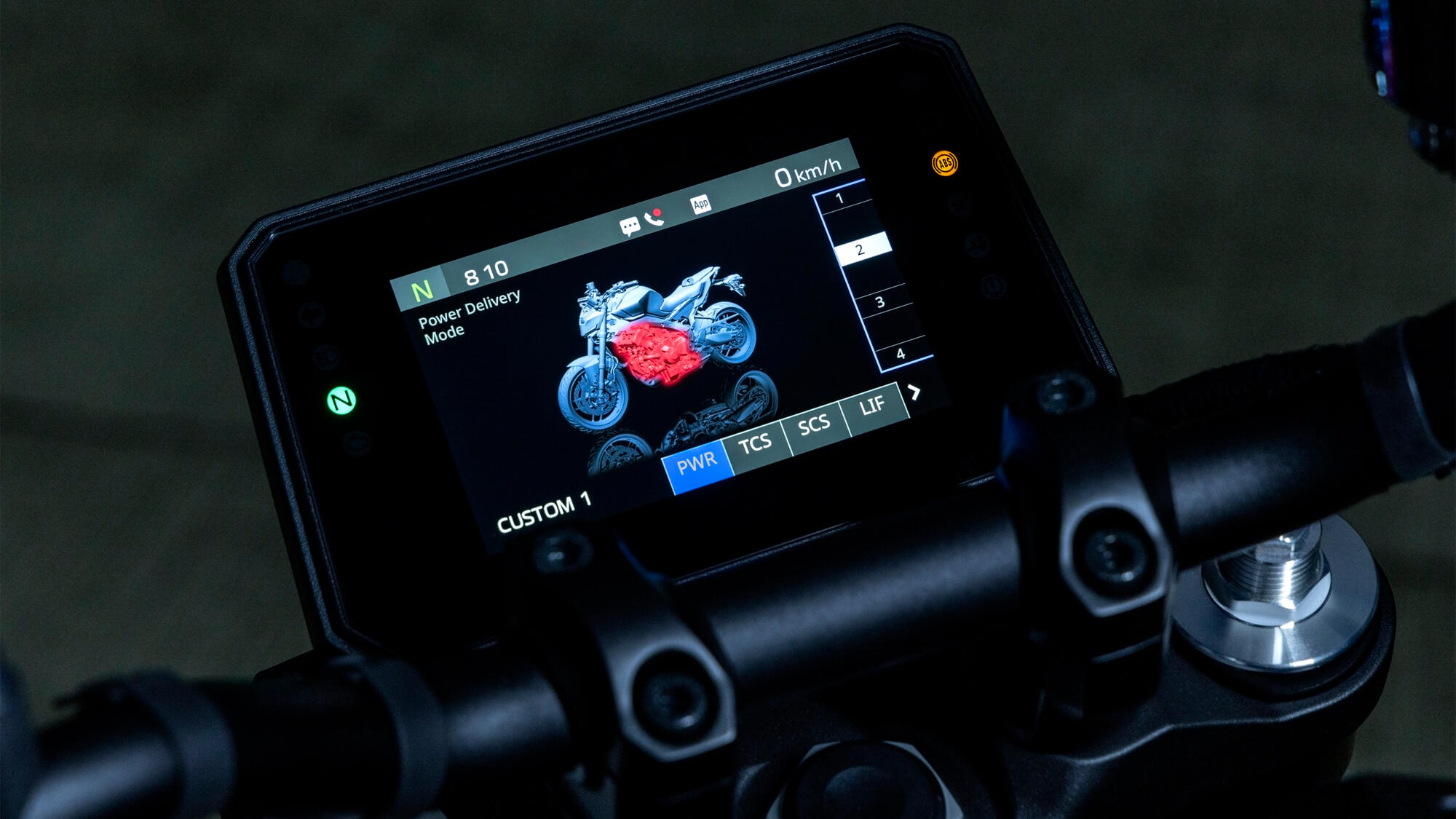

- Customisable ride modes with Yamaha Ride Control Settings
- Third generation quickshifter

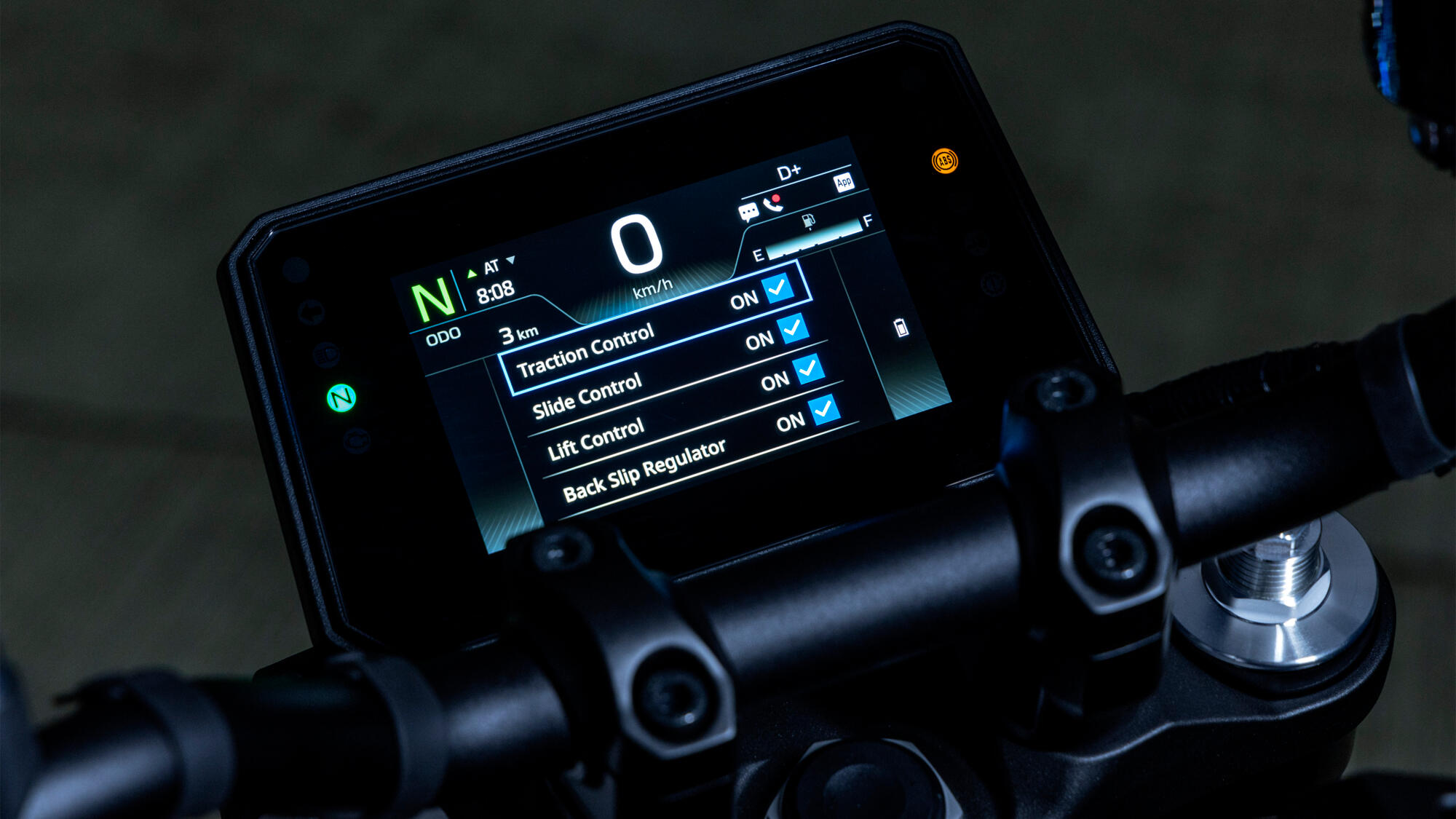

- Six-axis IMU with new Back Slip Regulator

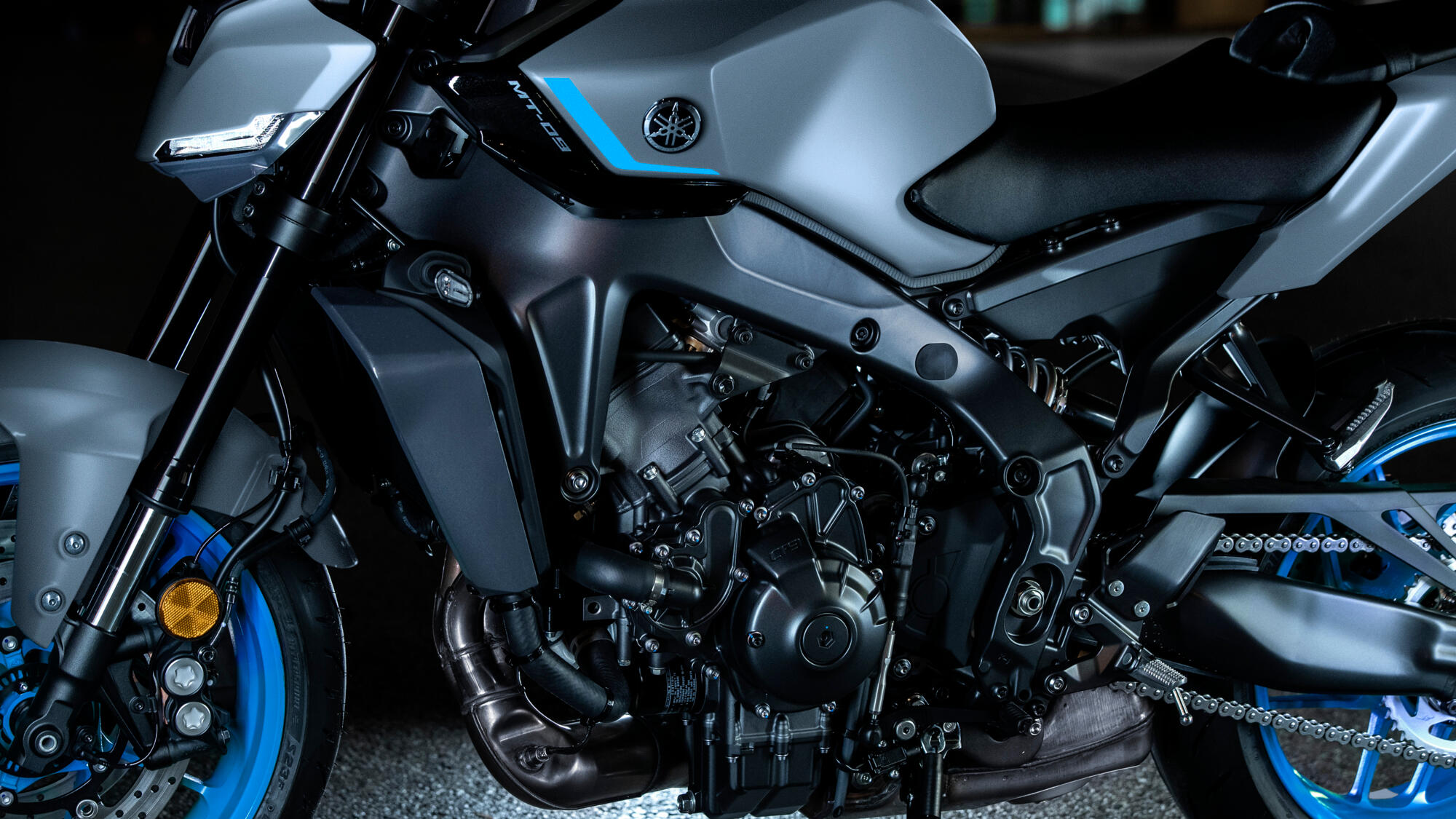

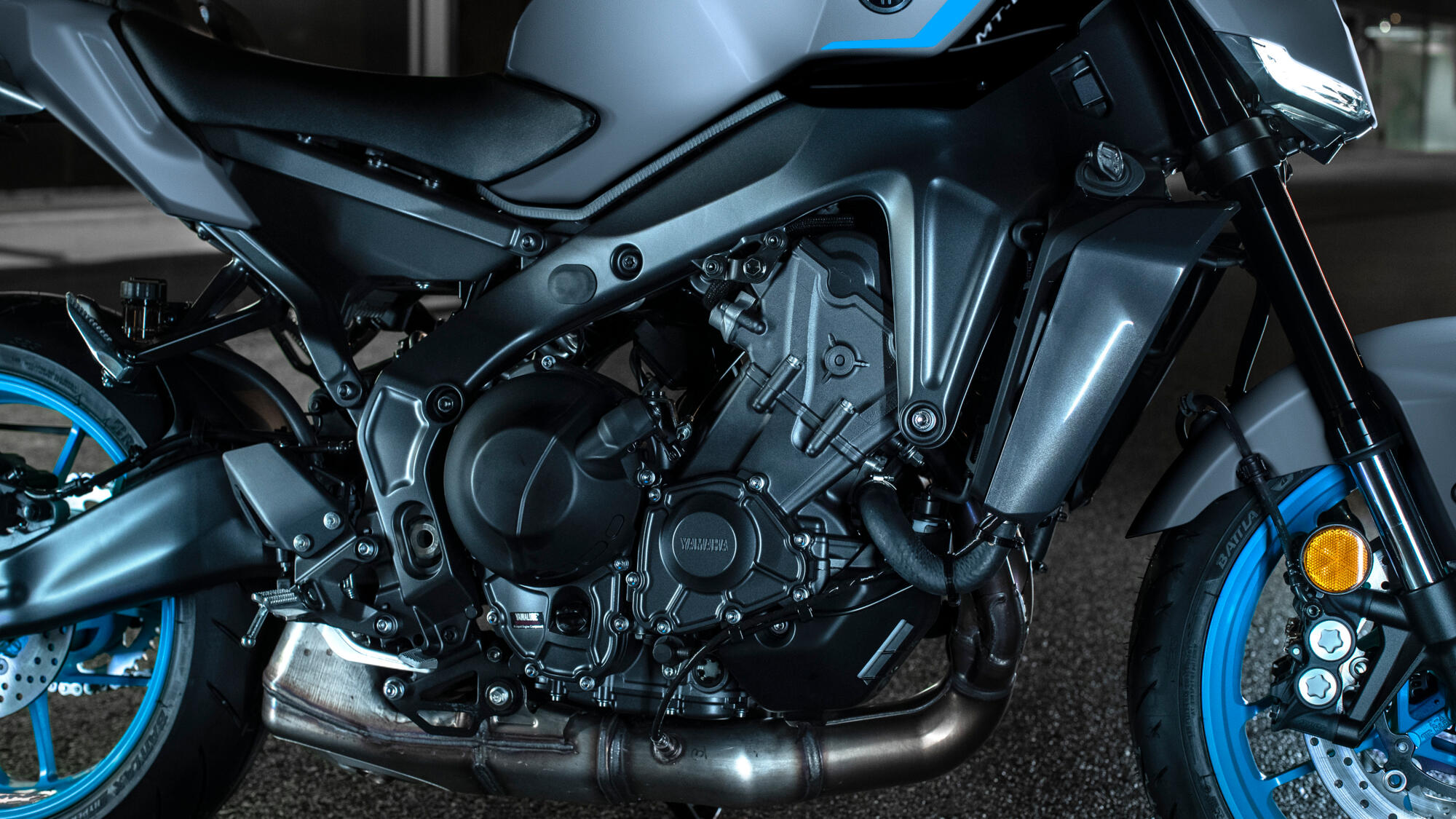

- Latest EU5+ 890CC CP3 engine
- Lightweight CF die-cast aluminium frame

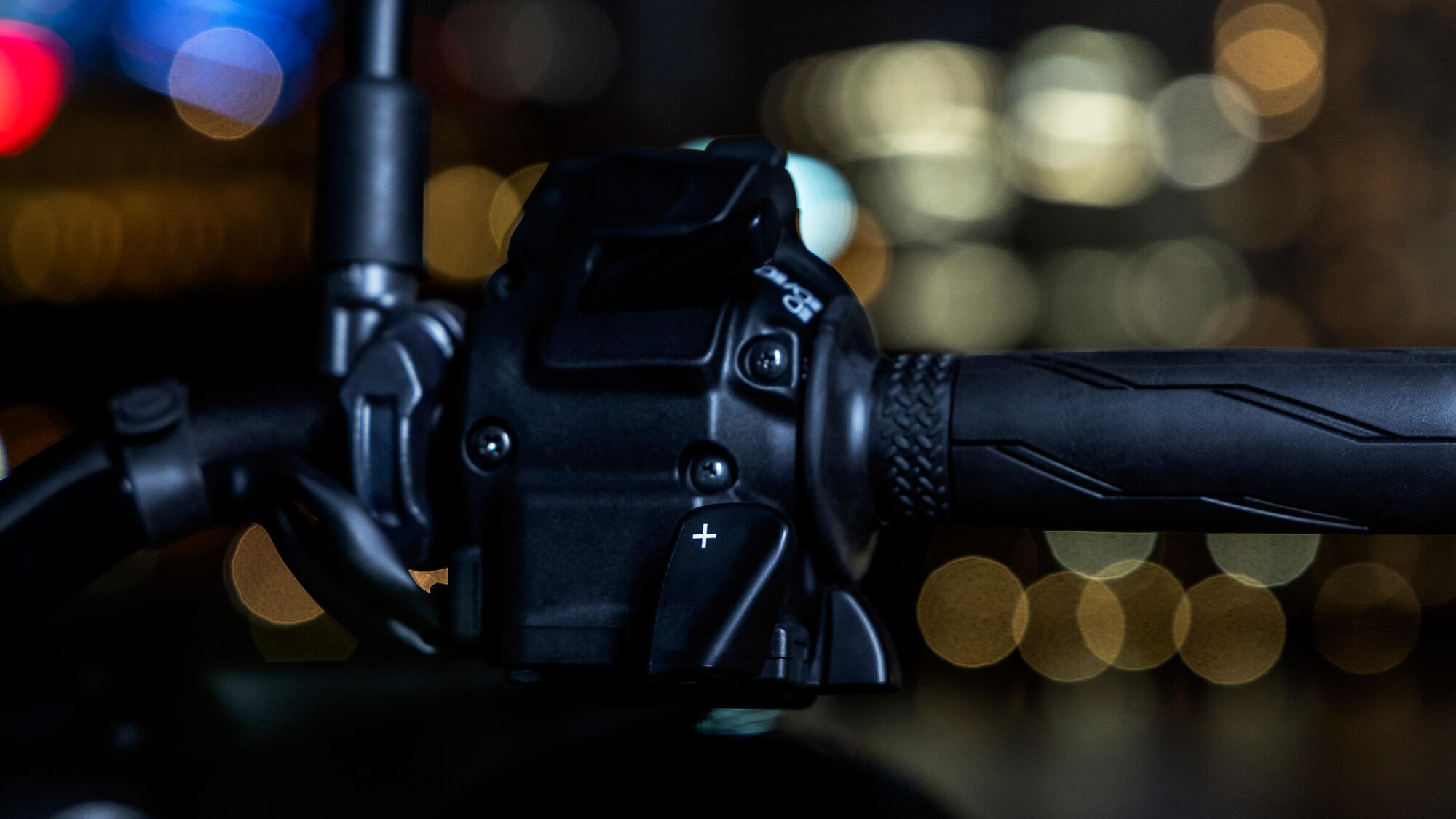

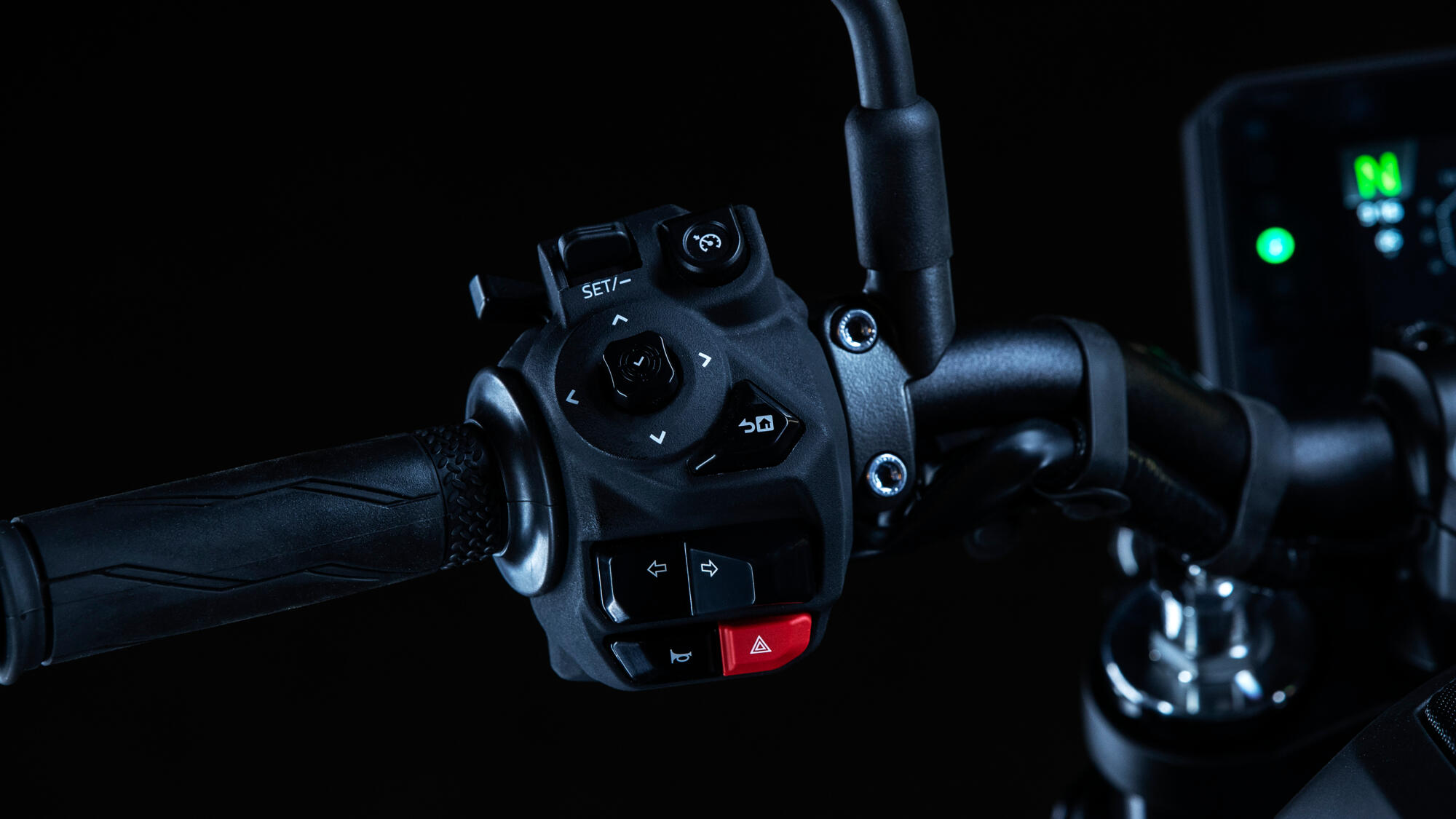

- New intuitive switchgear, indicator functions and Emergency Stop Signalling (ESS)

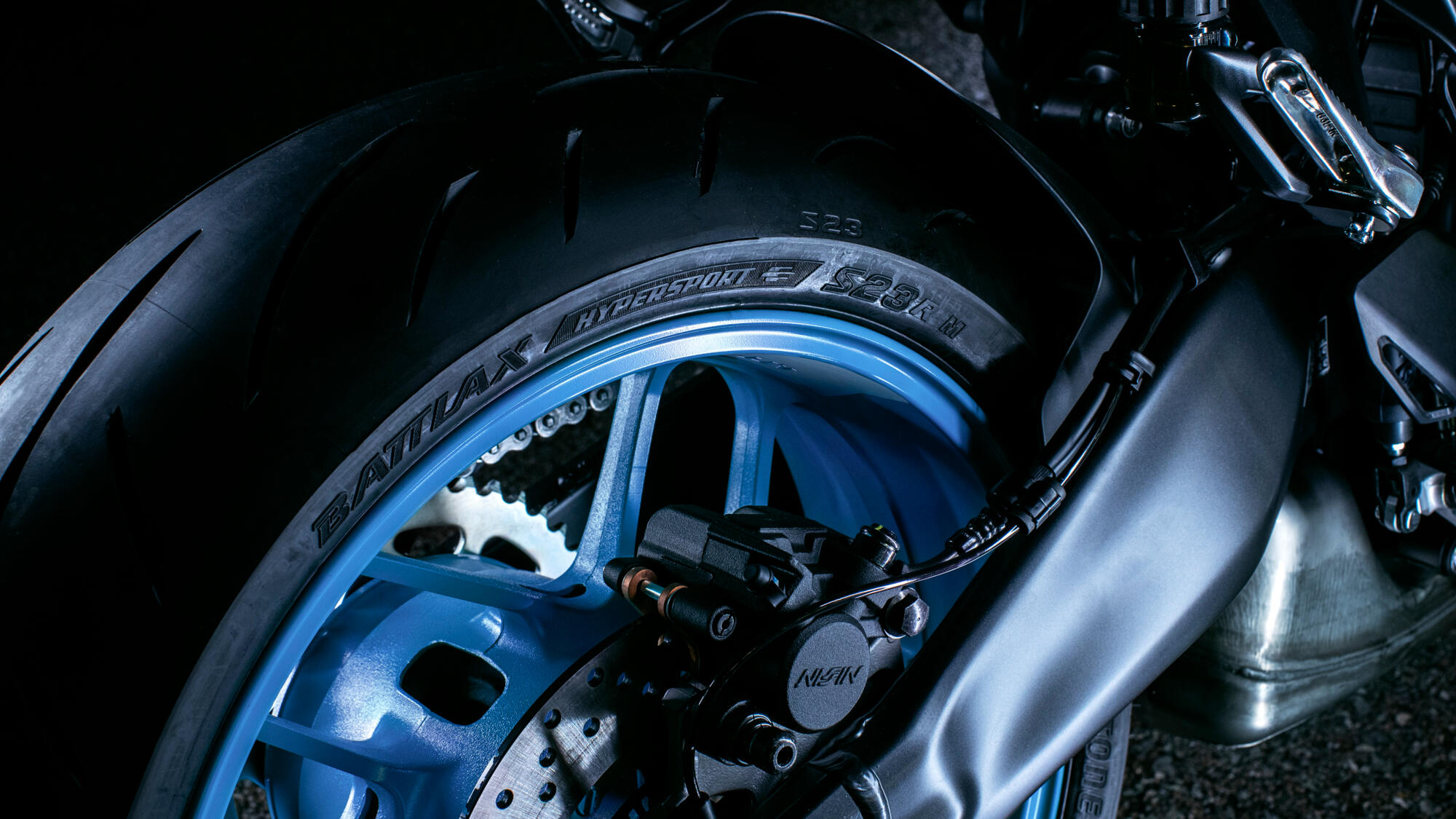

- Adjustable suspension and latest generation tyres

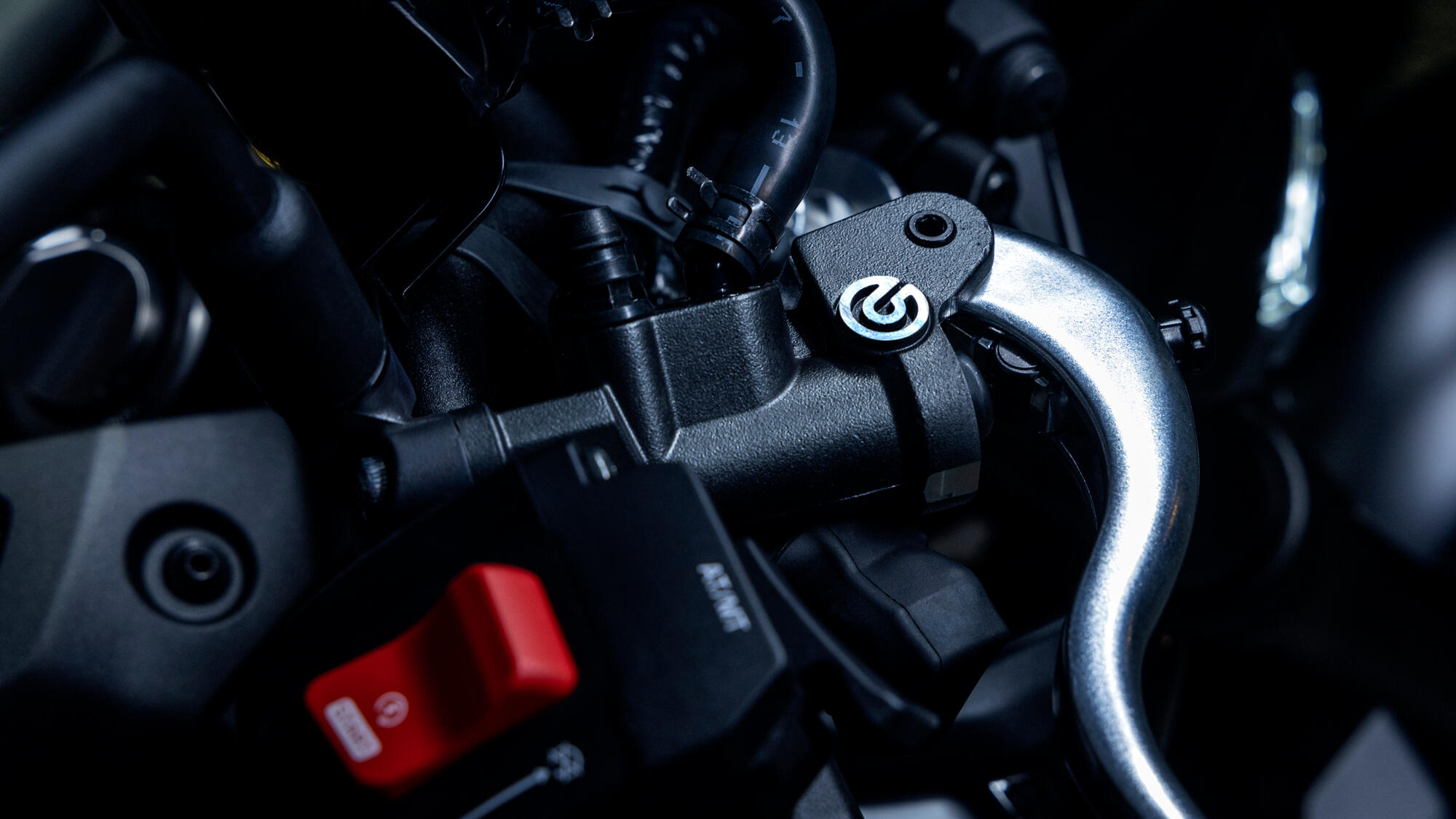

- Brembo radial master cylinder
| Engine Type: | 4-stroke, Liquid-cooled, DOHC, 4-valves, In-Line Three-Cylinder |
| Displacement: | 890cc |
| Max. Power: | 87.5 kW (119.0 PS) @ 10.000 rpm |
| Max. Torque: | 93.0 Nm (9.5 kgf-m) @ 7.000 rpm |
| Compression Ratio: | 11,5 : 1 |
| Bore x Stroke: | 78.0 × 62.1 mm |
| Ignition System: | TCI |
| Starter System: | Electric |
| Transmission System: | Constant Mesh, 6-speed |
| Final Transmission: | Chain |

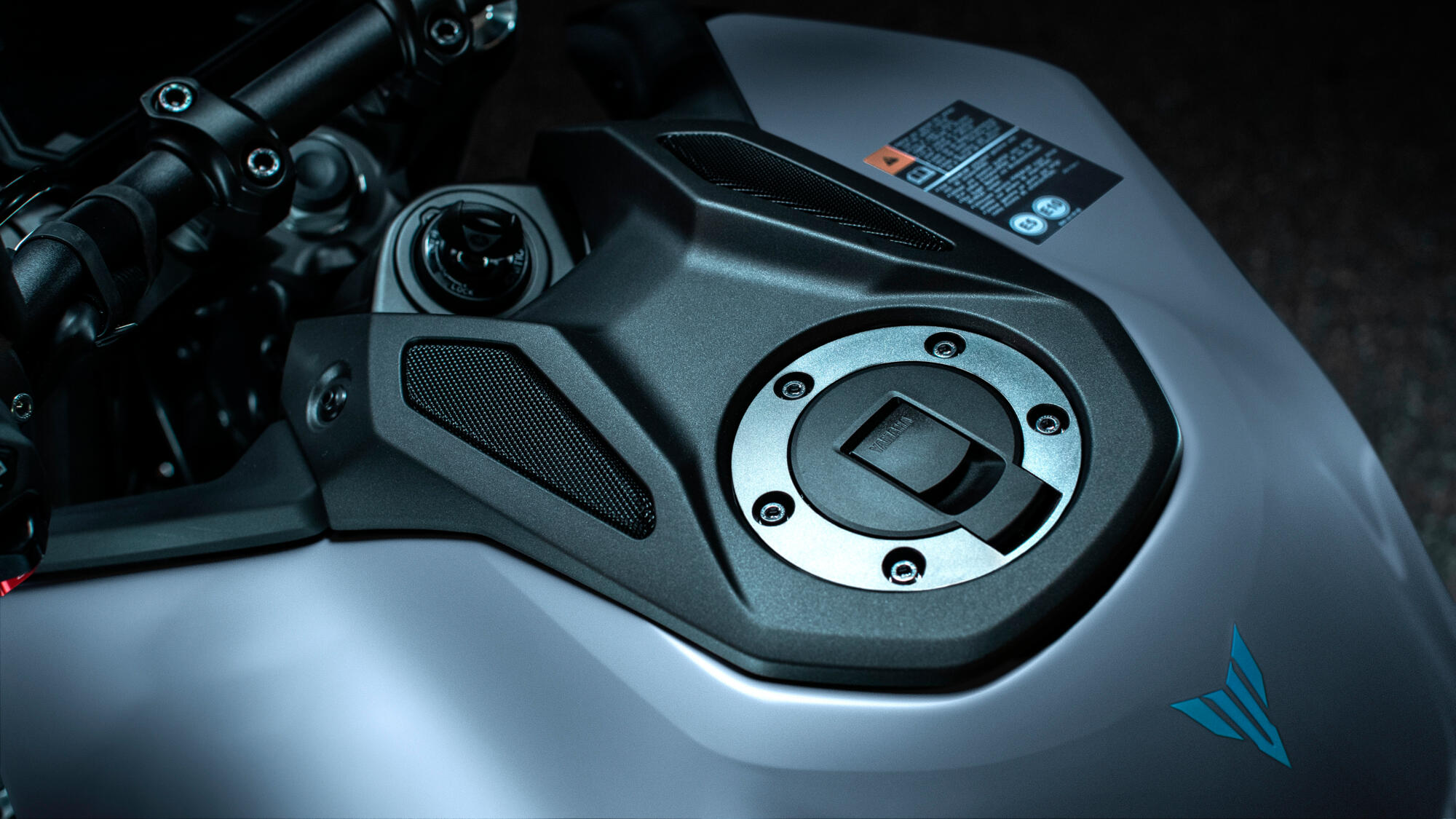

| Fuel Tank Capacity: | 14 L |
| Oil Capacity: | 3.50 L |
| Front Suspension System: | Upside-down telescopic fork, Ø 41 mm |
| Rear Suspension System: | link suspension, Swingarm |
| Front Brake: | Hydraulic dual disc, Ø 298mm |
| Rear Brake: | Hydraulic single disc, Ø 245mm |
| Front Tyre: | 120/70ZR17M/C (58W) Tubeless |
| Rear Tyre: | 180/55ZR17M/C (73W) Tubeless |
| Length x Width x Height (mm): | 2,090 mm x 820 mm x 1,145 mm |
| Seat Height (mm): | 825 mm |
| Wheel Base (mm): | 1,430 mm |
| Minimum Ground Clearance (mm): | 140 mm |
