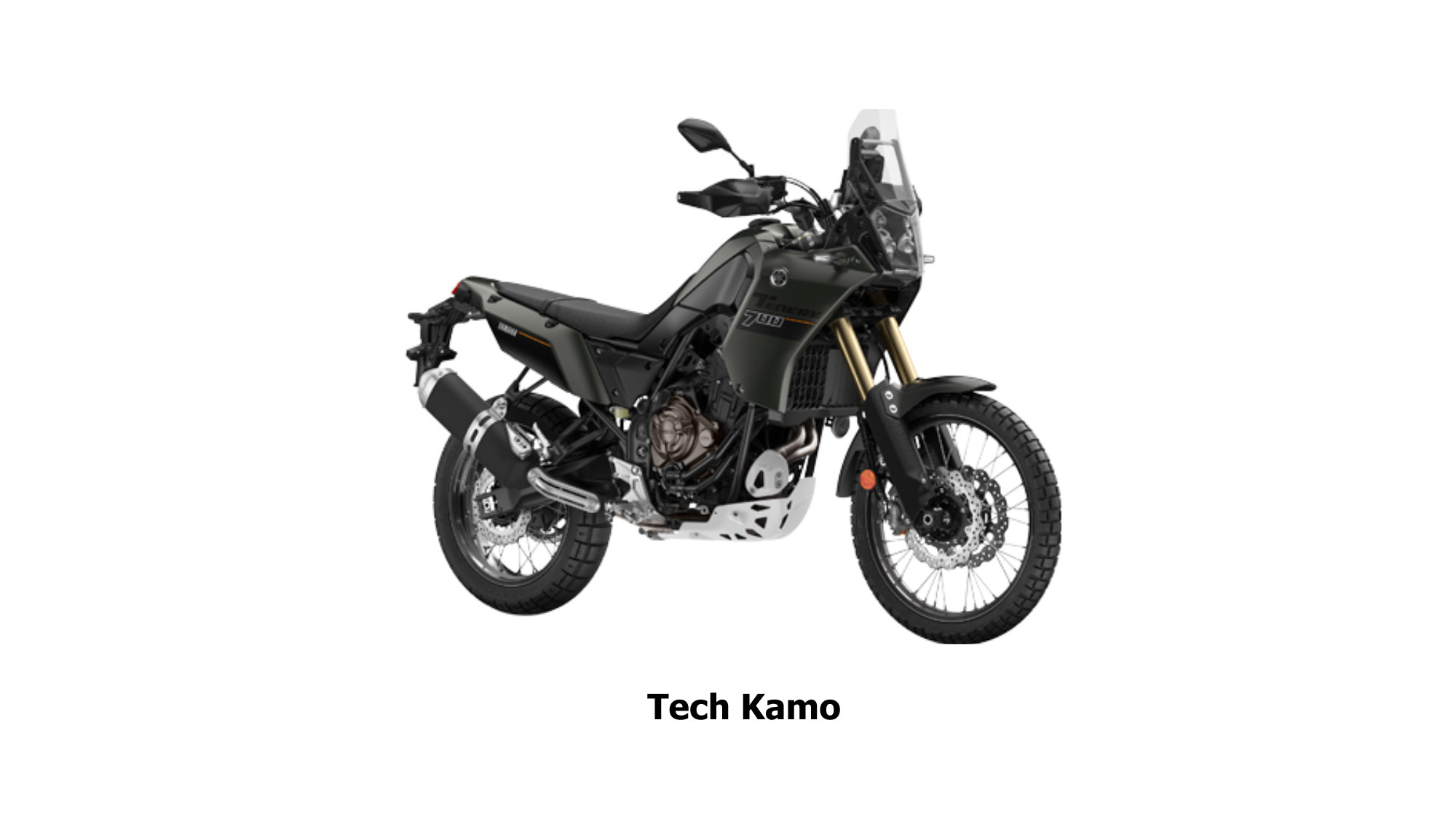

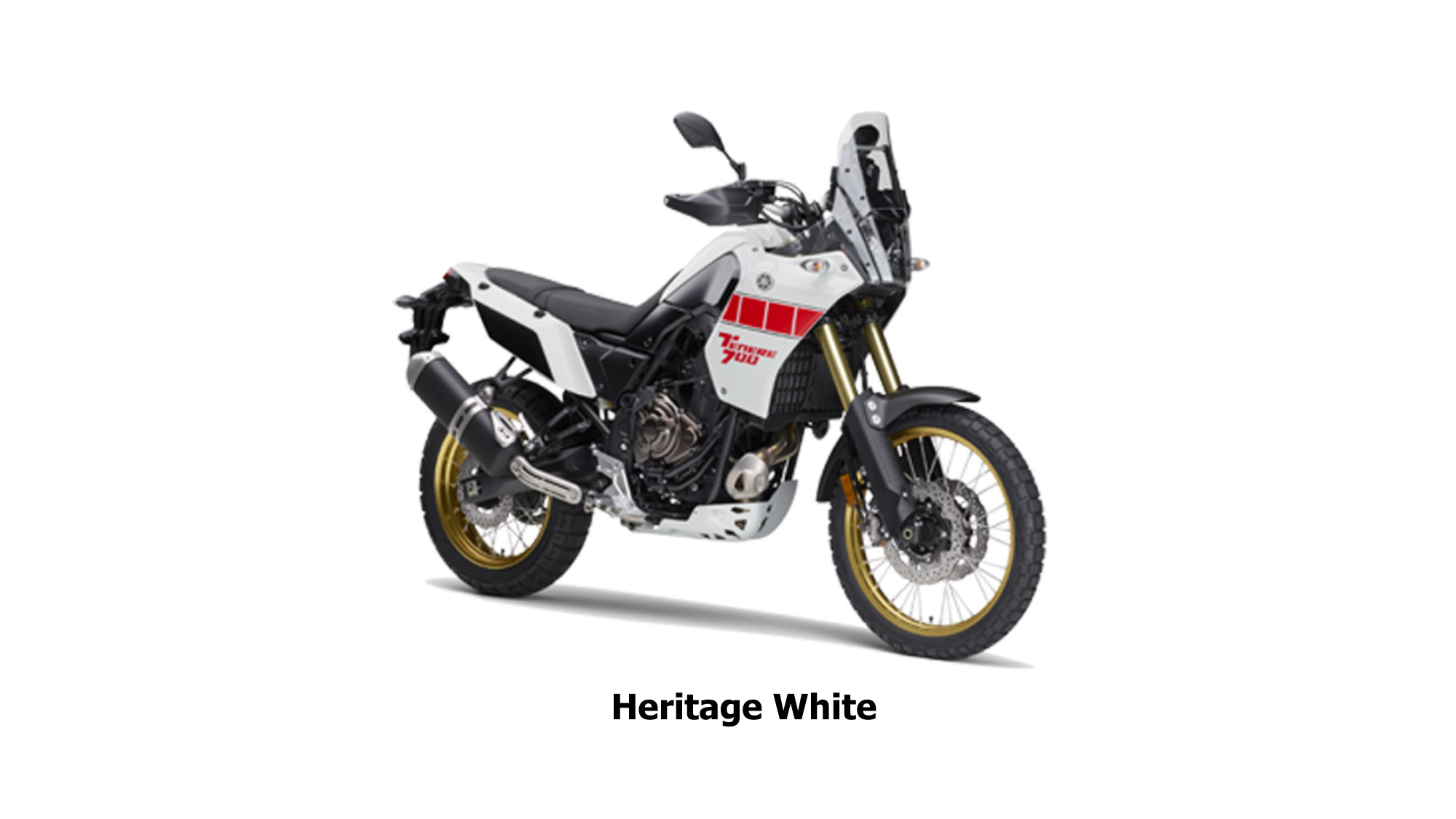

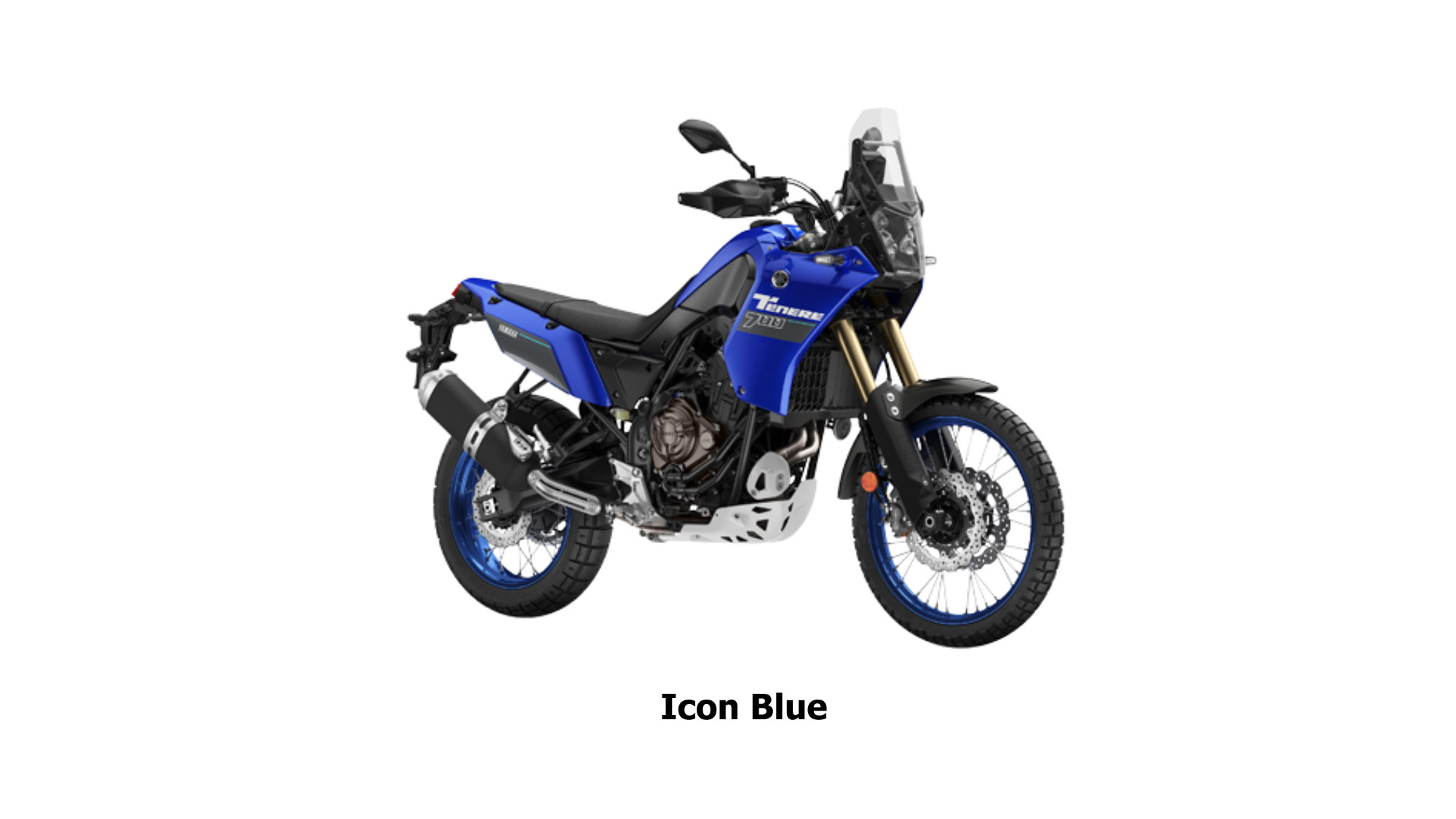

- Colors
- Engine
- Chasis
- Dimensions

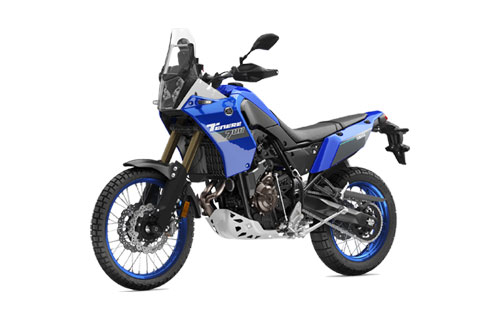

Driven by a high-torque, 690cc, 2-cylinder engine, equipped with a special optimised transmission that gives you the ideal balance of power and control, this rally-bred long distance adventure bike is built to master a wide range of riding conditions on the dirt of asphalt.
The compact tubular chassis and slim bodywork offer maximum agility during stand up or sit down riding – and long travel suspension and spoke wheels give you the ability to get to anywhere you want. Just fill up and go. The Next Horizon is Yours.
At a glance

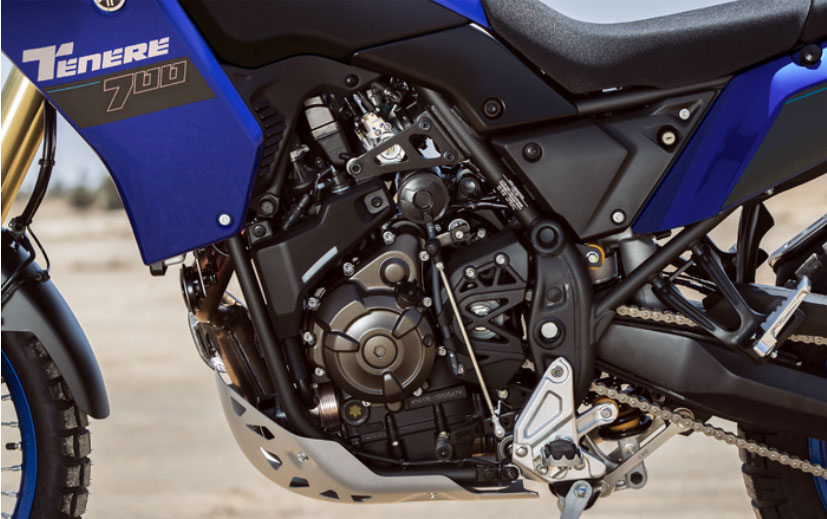

- 690cc 4-stroke CP2 engine, with high torque.
- Lightweight double cradle tubular steel frame.
- Slim, compact and ergonomic body and seat.

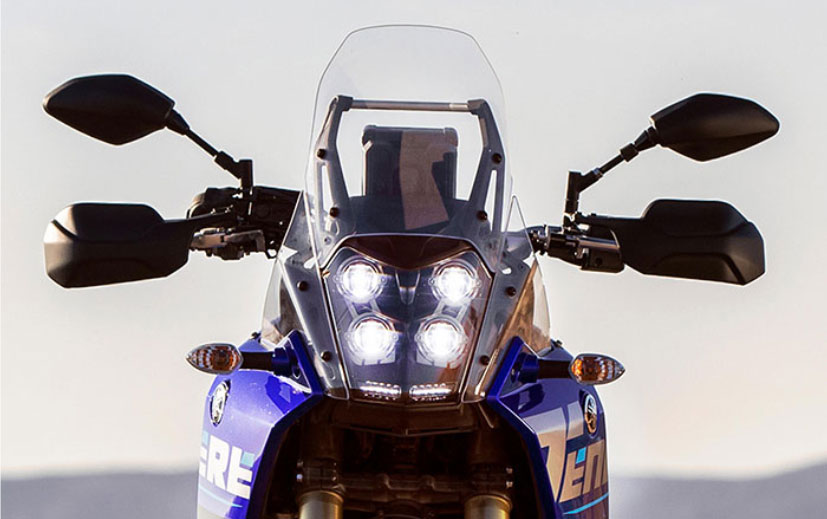

- Aggressive, rally-bred face, with 4-LED headlights.
- Adjustable, long-travel, 43mm upside-down forks.
- Remotely adjustable rear suspension.
- Rally-style cockpit, with tapered handlebars.
- 21-inch/18-inch spoke wheels, with adventure tyres
- Slim, long-range fuel tank, with 16-litre capacity
- Compact, rally-style, multi-function instruments.
- Switchable ABS, for on-the-fly adjustment.
- Screen and handguards give good rider protection
| Engine Type: | Liquid-cooled, 4-stroke, 4-valves, DOHC, 2-cylinder |
| Displacement: | 690 cc |
| Max. Power: | 54.0kW@9000rpm |
| Max. Torque: | 68.0Nm@6500rpm |
| Compression Ratio: | 11.5:1 |
| Bore x Stroke: | 80.0mm x 68.6mm |
| Ignition System: | TCI |
| Starter System: | Electric |
| Transmission System: | Constant Mesh, 6-speed |
| Final Transmission: | Chain |
| Lubrication: | Wet sump |
| Fuel Tank Capacity: | 16L |
| Front Suspension System: | Upside-down telescopic fork. |
| Rear Suspension System: | Swingarm, (Link type suspension) |
| Front Brake: | Hydraulic dual disc, Ø 282mm |
| Rear Brake: | Hydraulic single disc, Ø 245mm |
| Front Tyre: | 90/90 R21 M/C 54V M+S - Spoke wheels with Pirelli Scorpion Rally STR |
| Rear Tyre: | 150/70 R18 M/C 70V M+S - Spoke wheels with Pirelli Scorpion Rally STR |
| Wet Weight: | 204 kgs |
| Length x Width x Height (mm): | 2,370mm x 905mm x 1,455mm |
| Seat Height (mm): | 875mm |
| Wheel Base (mm): | 1,595mm |
| Minimum Ground Clearance (mm): | 240mm |

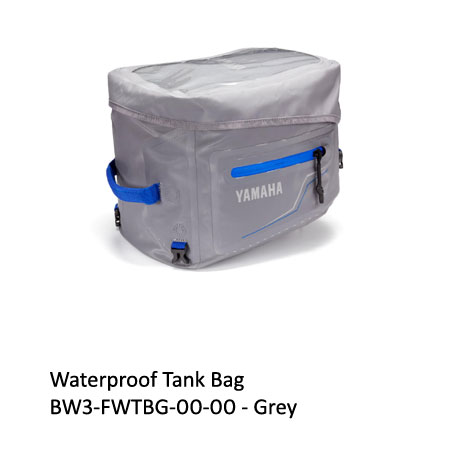

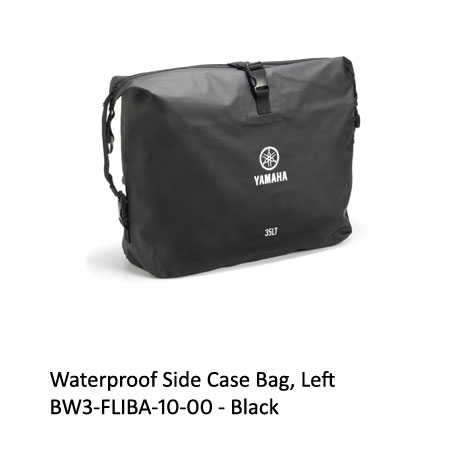

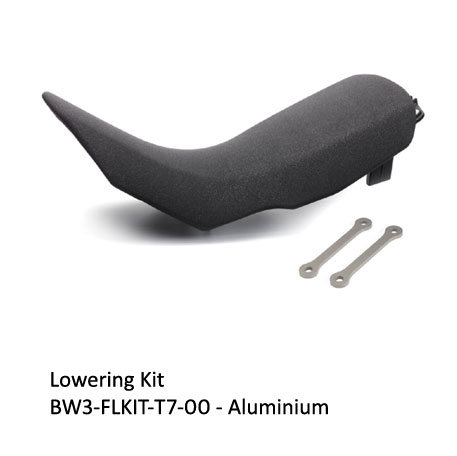

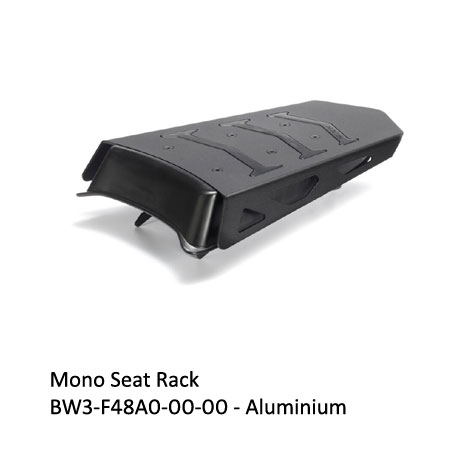

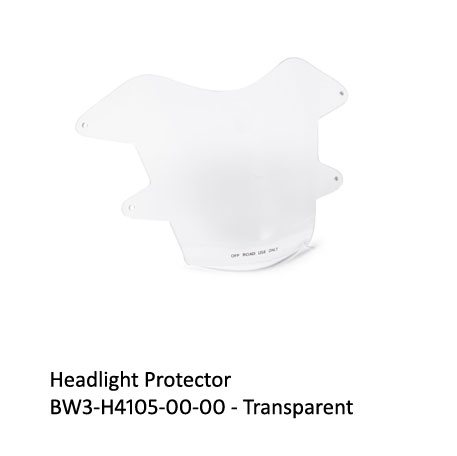

ACCESSORIES
